与集电极开路输出四路2输入正与非缓冲区 QUADRUPLE 2-INPUT POSITIVE-NAND BUFFERS WITH OPEN-COLLECTOR OUTPUTS
These devices contain four independent 2-input NAND buffer gates with open-collector outputs. The open-collector outputs require pull-up resistors to perform correctly. They may be connected to other open-collector outputs to implement active-low wired-OR or active-high wired-AND functions. Open-collector devices are often used to generate high VOH levels.
The SN5438, SN54LS38, and SN54S38 are characterized for operation over the full military temperature range of -55°C to 125°C. The SN7438, SN74LS38, and SN74S38 are characterized for operation from 0°C to 70°C.
View datasheet View product folder
电源电压DC 4.75V ~ 5.25V
输出接口数 1
输出电流 48.0 mA
电路数 4
位数 4
传送延迟时间 22.0 ns
电压波节 5.00 V
逻辑门个数 4
输入数 2
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount

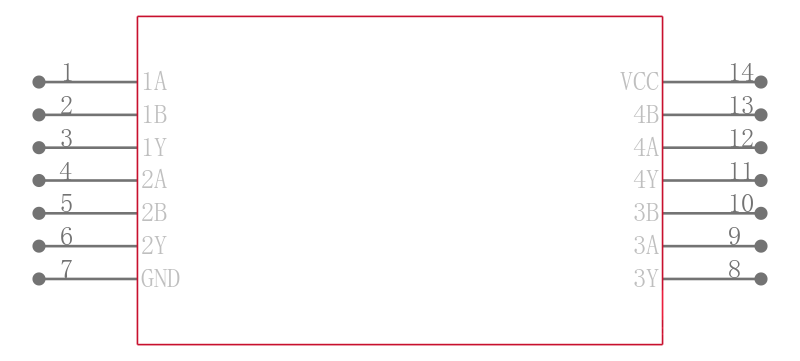

引脚数 14
封装 SOIC-14
长度 8.65 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-14
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN7438DR TI 德州仪器 | 当前型号 | 当前型号 |
SN7438DE4 德州仪器 | 完全替代 | SN7438DR和SN7438DE4的区别 |
SN7438DG4 德州仪器 | 完全替代 | SN7438DR和SN7438DG4的区别 |
SN7438DRE4 德州仪器 | 完全替代 | SN7438DR和SN7438DRE4的区别 |
