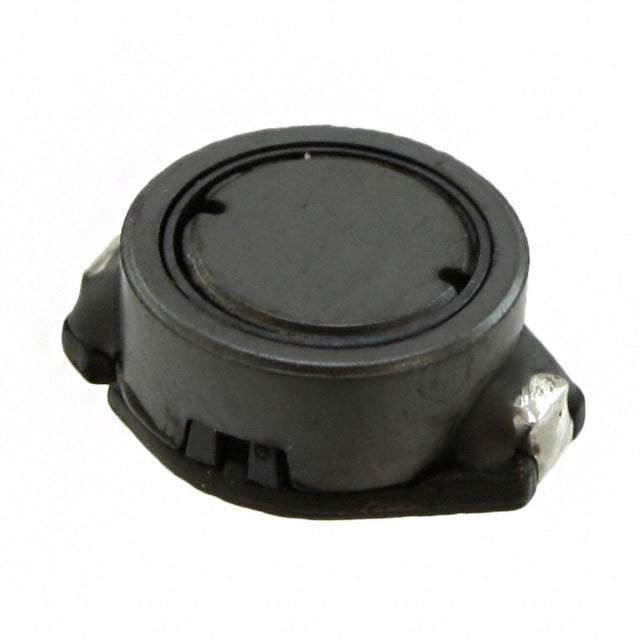

SRR1005-330Y

BOURNS  SRR1005-330Y  表面贴装功率电感器, SRR1005系列, 33 µH, ± 15%, 屏蔽, 0.16 ohm, 1.2 A

Features

■ Available in E12 series

■ Unit height of 5.2mm

■ Current up to 4.5A

Applications

■ Input/output of DC/DC converters

■ Power supplies for:

  • Portable communication equipment

  • Camcorders

  • LCD TVs

  • Car radios

立创商城:
33uH ±15% 1.2A 160mΩ

得捷:
FIXED IND 33UH 1.2A 160 MOHM SMD

贸泽:
固定电感器 33uH 30% SMD 1005

e络盟:
功率电感SMD, 33 µH, 1.2 A, 屏蔽, 1.56 A, SRR1005系列, 12.7mm x 10mm x 5.2mm

艾睿:
Make any circuit look clean and compact using this power SRR1005-330Y surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 1.2 A with a maximum resistance of 160m Ohm. It has a tolerance of 15%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 15M Hz. It has an inductance of 33u H. This device utilizes wirewound technology. This product is 12.8 mm long, 5.2 mm tall and 10.2 mm deep.

安富利:
Ind Power Shielded Wirewound 33uH 15% 1KHz 40Q-Factor Ferrite 1.2A T/R

TME:
dławik bourns

Verical:
Inductor Power Shielded Wirewound 33uH 15% 1KHz 40Q-Factor Ferrite 1.2A 0.16Ohm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 33uH 15% 1KHz 40Q-Factor Ferrite 1.2A 160mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 33uH 15% 1KHz 40Q-Factor Ferrite 1.2A 160mOhm DCR T/R
