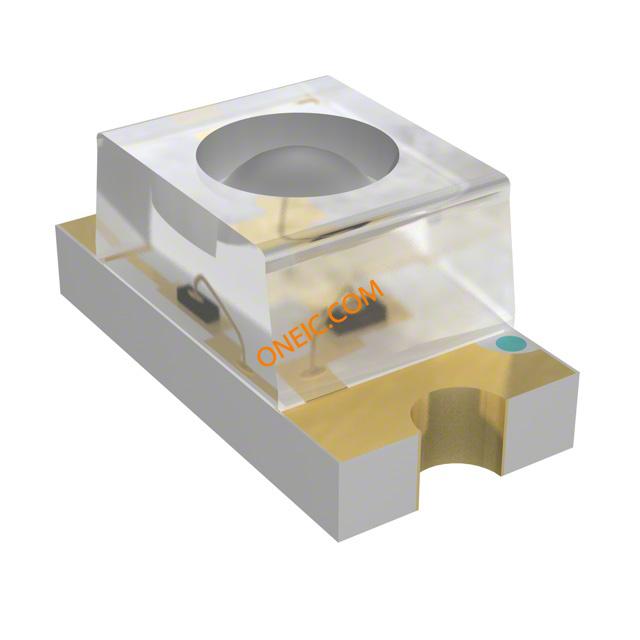

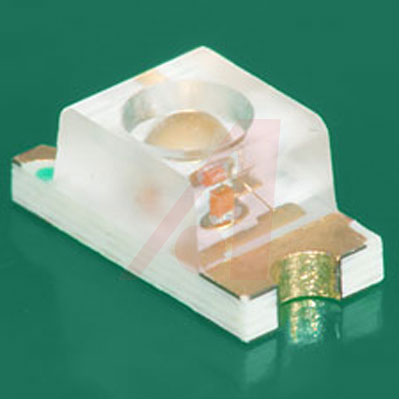

LED; SMD; 1206; Ultra Red; 655nm; 220mcd; Water Clear Lens; 30Deg Viewing Angle
** 1204 Package SMT s**
Bivar surface mount 1204 package LEDs can be used in almost any lighting or indication application. The right angle package is ideal for small scale applications such as edge lighting or general indication. Low power consumption and excellent long life reliability are suitable for battery powered equipment. A wide variety of wavelength and intensity combinations are available to meet any illumination need.
额定功率 78 mW
正向电压 2.1 V
波长 640 nm
发光强度 220 mcd
视角 30°
峰值波长 655 nm
耗散功率 78 W
测试电流 20 mA
正向电流 20 mA
正向电压Max 2.6 V
正向电流Max 30 mA
工作温度Max 80 ℃
工作温度Min -30 ℃
耗散功率Max 78 mW
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.40 mm
封装公制 3216
封装 1206
颜色 Red
外观颜色 Transparent
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 无铅
