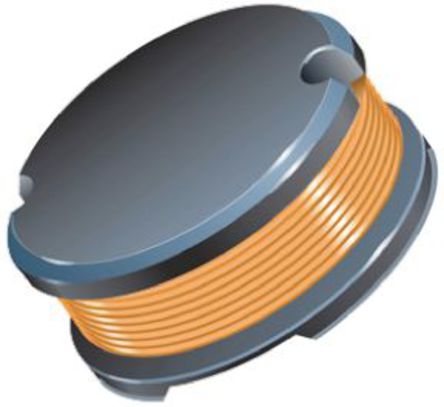

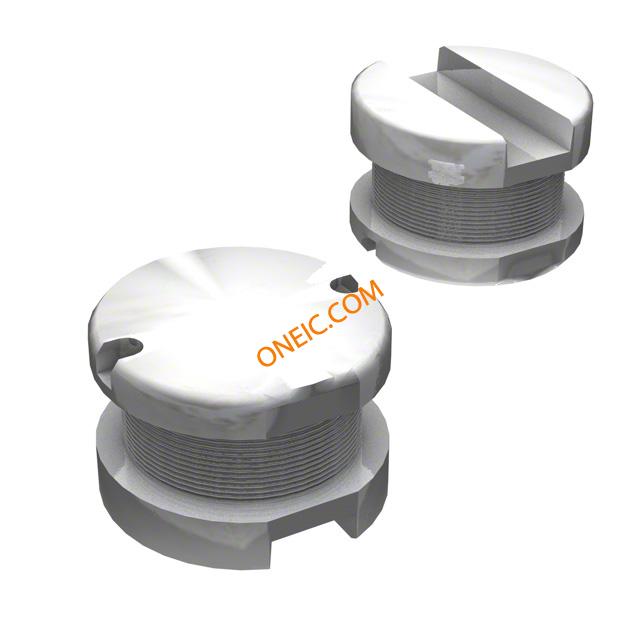

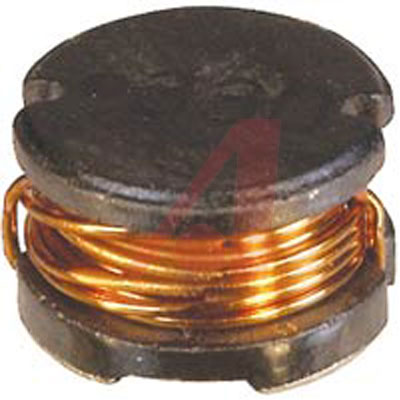

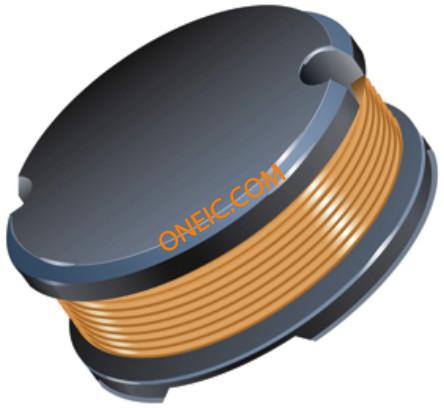

SDR0805-121KL

BOURNS  SDR0805-121KL  电感, 120uH, 1A, ±10%, 6MHZ

SDR0805 系列线绕扼流圈

提供 E12 系列

小型设计，最大直径仅 7.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 120UH 660MA 480MOHM SM

立创商城:
120uH ±10% 660mA 480mΩ

欧时:
### SDR0805 系列线绕扼流圈提供 E12 系列 小型设计，最大直径仅 7.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:

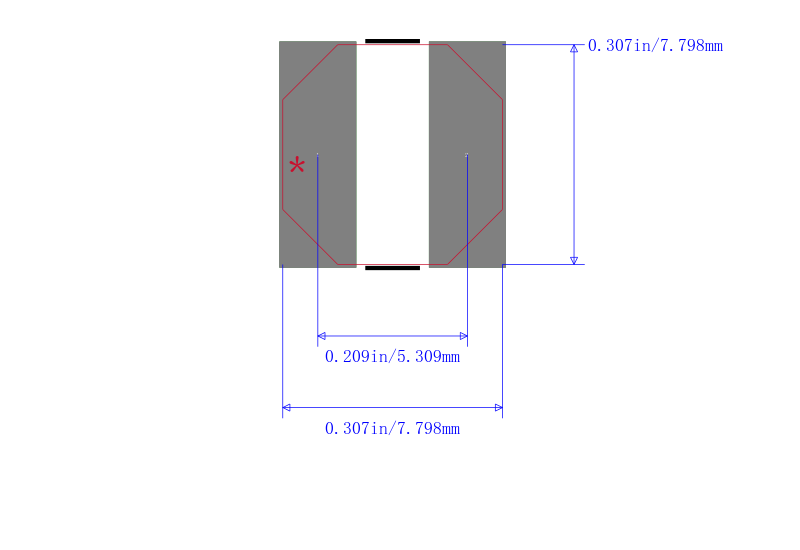

功率电感SMD, 120 µH, 660 mA, 非屏蔽, 1 A, SDR0805 Series, 7.8mm x 7.8mm x 5.3mm

艾睿:
This power SDR0805-121KL surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 10%. This product is 5.3 mm tall with a diameter of 7.8 mm. This device utilizes wirewound technology. It has an inductance of 120u H. This SMD inductor has a maximum DC current of 660m A with a maximum resistance of 480m Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 6M Hz.

Allied Electronics:
Inductor; Power; Non-Shielded; Wirewound; 120uH; 10%; 0.66A

安富利:
Ind Power Wirewound 120uH 10% 1KHz 12Q-Factor Ferrite 660mA T/R

Chip1Stop:
Inductor Power Wirewound 120uH 10% 1KHz 12Q-Factor Ferrite 660mA 480mOhm DCR T/R

Verical:
Inductor Power Unshielded Wirewound 120uH 10% 1KHz 12Q-Factor Ferrite 0.66A 0.48Ohm DCR T/R

Newark:
# BOURNS  SDR0805-121KL  Surface Mount Power Inductor, SDR0805 Series, 120 H, 10%, Unshielded, 0.48 ohm, 660 mA

MASTER:
Inductor Power Wirewound 120uH 10% 1KHz 12Q-Factor Ferrite 660mA 480mOhm DCR T/R

Online Components:
Inductor Power Wirewound 120uH 10% 1KHz 12Q-Factor Ferrite 660mA 480mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 120uH 10% 1KHz 12Q-Factor Ferrite 660mA 480mOhm DCR T/R
