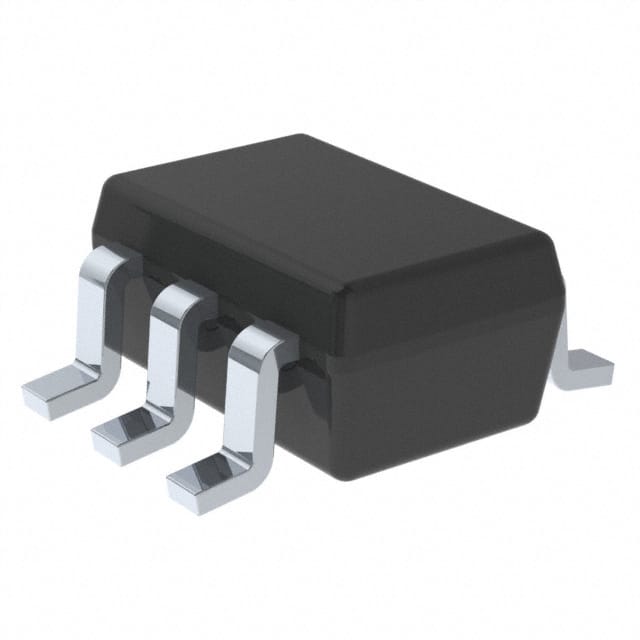

SN74LVC1G27DCKRE4

TEXAS INSTRUMENTS  SN74LVC1G27DCKRE4  或非门, LVC系列, 1门, 3输入, 32 mA, 1.65V至5.5V, SC-70-6

The is a single 3-input Positive-NOR Gate. The device performs the Boolean function Y = A + B + C\ or Y = A\ • B\ • C\ in positive logic. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

.

Supports 5V VCC operation

.

Inputs accept voltages to 5.5V

.

Supports down translation to VCC

.

Maximum tpd of 4.5ns at 3.3V

.

10-µA Maximum ICC low power consumption

.

±24mA Output drive at 3.3V

.

Ioff supports live insertion

.

Partial-power-down mode

.

Back-drive protection

.

Latch-up performance exceeds 100mA per JESD 78, Class II

.

ESD protection exceeds JESD 22

.

Green product and no Sb/Br
