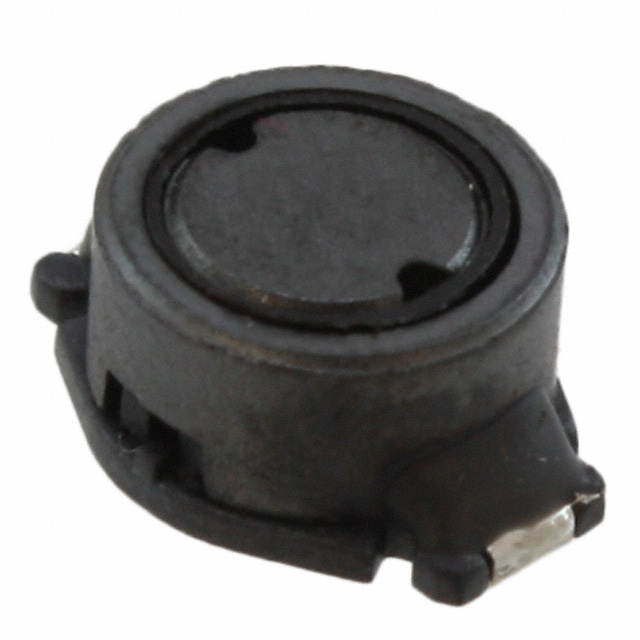

SRR0805-470Y

BOURNS  SRR0805-470Y.  功率电感, 47uH, 15%容差, 0805封装

屏蔽 绕线 器 280 毫欧最大 非标准

得捷:
FIXED IND 47UH 750MA 280MOHM SMD

立创商城:
47uH ±15% 750mA 280mΩ

e络盟:
功率电感SMD, 47 µH, 750 mA, 屏蔽, 1 A, SRR0805系列, 10.5mm x 8mm x 4.7mm

艾睿:
Use this power SRR0805-470Y surface mount inductor from Bourns to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device utilizes wirewound technology. It has an inductance of 47u H. This SMD inductor has a maximum DC current of 750m A with a maximum resistance of 280m Ohm. It has a tolerance of 15%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 10.5M Hz. This product is 10.8 mm long, 4.7 mm tall and 8.2 mm deep.

安富利:
Ind Power Shielded Wirewound 47uH 15% 1KHz 32Q-Factor Ferrite 750mA T/R

Verical:
Inductor Power Shielded Wirewound 47uH 15% 1KHz 32Q-Factor Ferrite 0.75A 0.28Ohm DCR T/R

Newark:
# BOURNS  SRR0805-470Y  Surface Mount Power Inductor, SRR0805 Series, 47 µH, 750 mA, 1 A, Shielded, 0.28 ohm

MASTER:
Inductor Power Shielded Wirewound 47uH 15% 1KHz 32Q-Factor Ferrite 750mA 280mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 47uH 15% 1KHz 32Q-Factor Ferrite 750mA 280mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 47uH 15% 1KHz 32Q-Factor Ferrite 750mA 280mOhm DCR T/R
