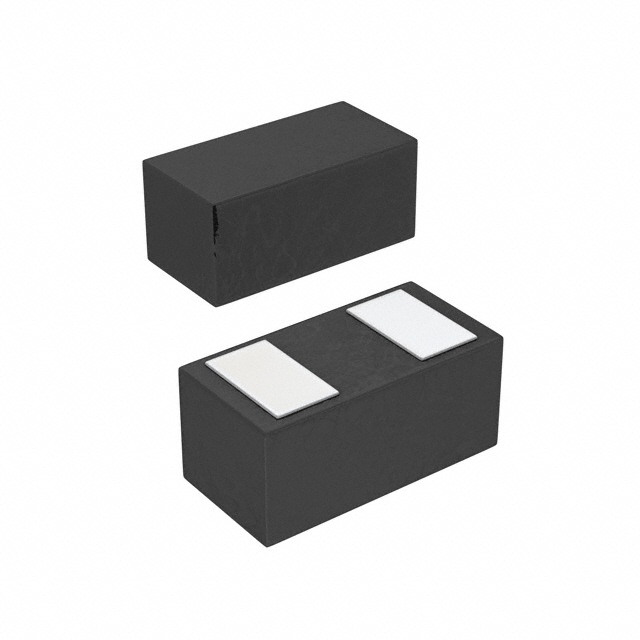

TE CONNECTIVITY / RAYCHEM SESD0201C-120-058 ESD Protection Device, 0201, 2Pins, 0.25W1/4W
**Benefits:
**
* Small Size Bidirectional ESD Protection Diodes**
**
* Appropriate for ESD Protection in Space-Constrained Portable Electronics and Mobile Handsets**
**
* Bidirectional Operation Allows Placement on PCB without Orientation Constraint**
**
* Helps Protect Electronic Circuits Against Damage from Electrostatic Discharge ESD Events**
**
* Assist Equipment to Pass IEC61000-4-2, Level 4 Testing **
**
* RoHS Compliant and Halogen Free**
Features:
**
* Input Capacitance: 12 pF Typ.**
**
* Low Leakage Current: 1.0 μA Max.**
**
* Low Breakdown Voltage: 5.8 V Min.**
**
* ESD Maximum Rating Per IEC61000-4-2 Standard: - ±8 kV Contact Discharge - ±15 kV Air Discharge**
**
* Capable of Withstanding Numerous ESD Strikes**
**

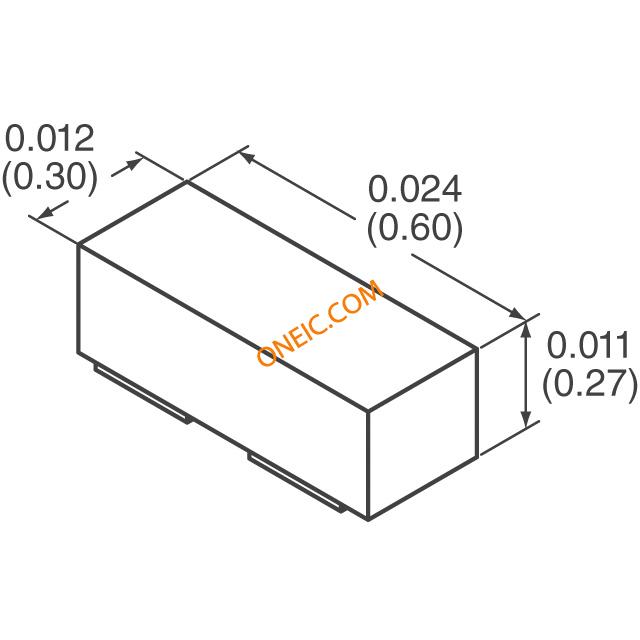

* Small Package Size: 0.60 mm × 0.30 mm**
**
* Low Package Height: 0.27 mm**
Applications:
**
* Cellular Phones and Portable Electronics**
**
* Digital Cameras and Camcorders**
**
* Keypads, Pushbuttons, Low Voltage DC Lines, Speakers, Headphones, Microphones**
**
* Applications Requiring ESD Performance in an Ultrasmall Package
额定电压DC 5.00 V
工作电压 5 V
电容 13.5 pF
击穿电压 5.8 V
耗散功率 250 mW
功耗 250 mW
输入电容 13.5 pF
最小反向击穿电压 5.8 V
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 0201
长度 1.6 mm
宽度 0.8 mm
高度 0.27 mm
封装 0201
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
HTS代码 8536308000
