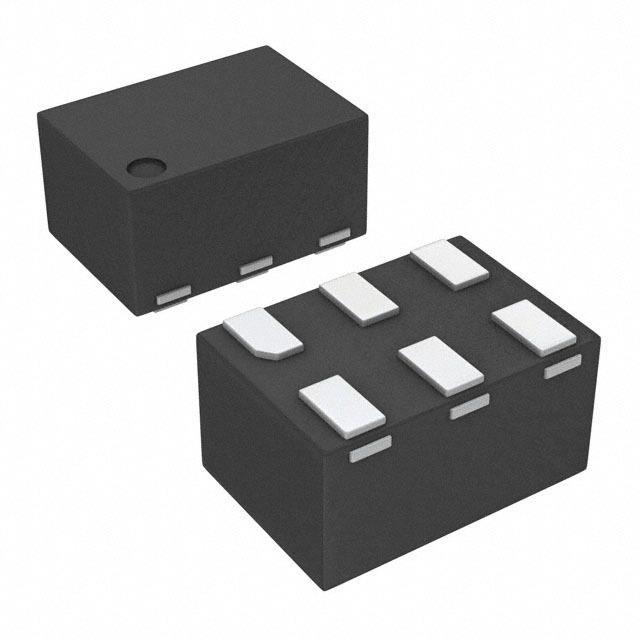

低功耗单路 2 输入正与非门 6-SON -40 to 85
* Available in the Ultra Small 0.64 mm2 Package DPW with 0.5-mm Pitch * Low Static-Power Consumption ICC = 0.9 µA Max * Low Dynamic-Power Consumption Cpd = 4 pF Typ at 3.3 V * Low Input Capacitance Ci = 1.5 pF Typ * Low Noise Overshoot and Undershoot CC * Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection * Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at Input Vhys = 250 mV Typ at 3.3 V * Wide Operating VCC Range of 0.8 V to 3.6 V * Optimized for 3.3-V Operation * 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation * tpd = 4.8 ns Max at 3.3 V * Suitable for Point-to-Point Applications * Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II * ESD Performance Tested Per JESD 22 * 2000-V Human-Body Model A114-B, Class II * 1000-V Charged-Device Model C101
