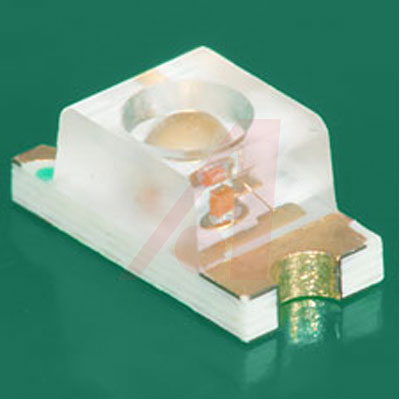

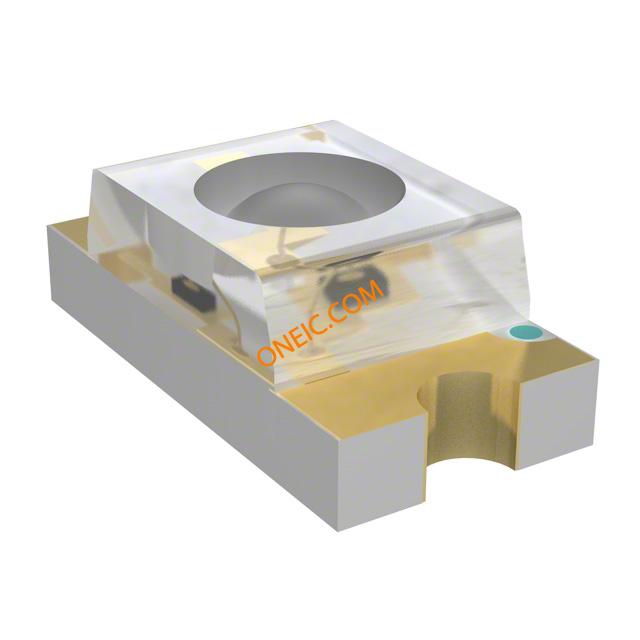

标准LED-SMD Ultra Blue 470 nm Water Clear
** 1204 Package SMT s**
Bivar surface mount 1204 package LEDs can be used in almost any lighting or indication application. The right angle package is ideal for small scale applications such as edge lighting or general indication. Low power consumption and excellent long life reliability are suitable for battery powered equipment. A wide variety of wavelength and intensity combinations are available to meet any illumination need.
额定功率 100 mW
正向电压 3.3 V
波长 470 nm
发光强度 115 mcd
视角 140°
峰值波长 468 nm
测试电流 20 mA
正向电流 20 mA
正向电压Max 4.2 V
正向电流Max 25 mA
工作温度Max 80 ℃
工作温度Min -30 ℃
耗散功率Max 100 mW
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.10 mm
封装公制 3216
封装 1206
颜色 Blue
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
