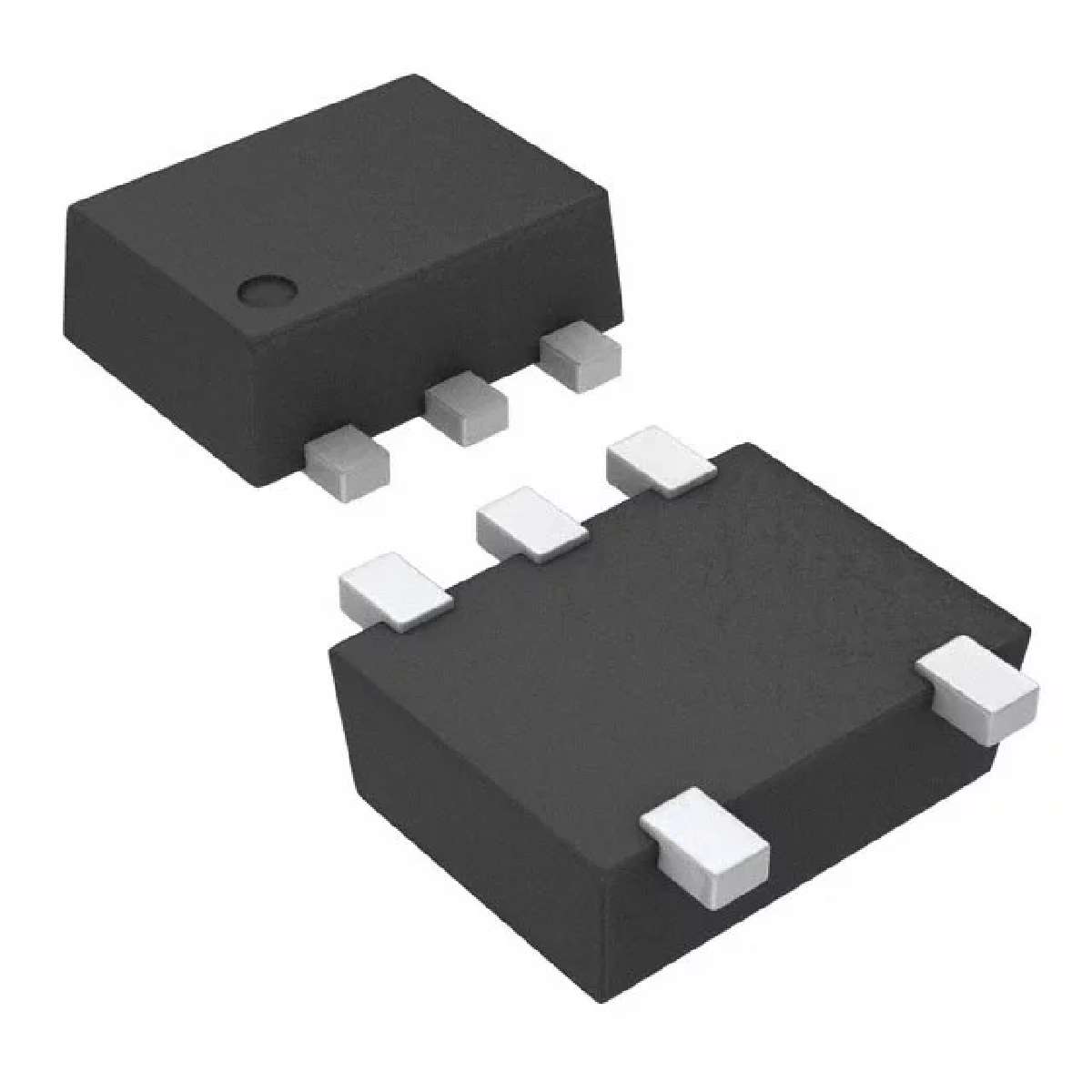

SN74LVC1G14DRLRG4

单施密特触发器逆变器 SINGLE SCHMITT-TRIGGER INVERTER

DESCRIPON

This single Schmitt-trigger inverter is designed for 1.65-V to 5.5-V VCC operation.

FEATURES

• Available in the Texas Instruments NanoStar™ and NanoFree™ Packages

• Supports 5-V VCC Operation

• Inputs Accept Voltages to 5.5 V

• Max tpd of 4.6 ns at 3.3 V

• Low Power Consumption, 10-µA Max ICC

• ±24-mA Output Drive at 3.3 V

• Ioff Supports Partial-Power-Down Mode Operation

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model A114-A

– 200-V Machine Model A115-A

– 1000-V Charged-Device Model C101
