六路反向器 HEX INVERTERS
Texas Instruments brings you their latest inverting Schmitt trigger, an edge-triggered device that can essentially save the state of the device until a new state is generated. This inverting Schmitt trigger has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V.
电源电压DC 2.00V ~ 3.60V
输出电流 24.0 mA
电路数 6
位数 6
传送延迟时间 4.50 ns
电压波节 3.30 V, 2.70 V, 2.50 V
逻辑门个数 6
输出电流驱动 -1.00 mA
输入数 6
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
安装方式 Surface Mount
引脚数 14

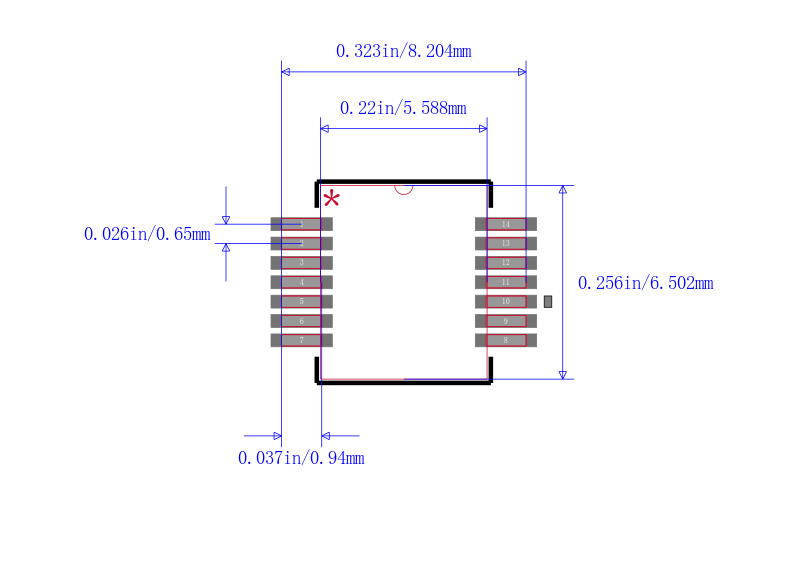

封装 SSOP-14
封装 SSOP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC04ADBRG4 TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC04ADBLE 德州仪器 | 完全替代 | SN74LVC04ADBRG4和SN74LVC04ADBLE的区别 |
SN74LVC04ADBR 德州仪器 | 类似代替 | SN74LVC04ADBRG4和SN74LVC04ADBR的区别 |
74LVC04ADB,112 恩智浦 | 功能相似 | SN74LVC04ADBRG4和74LVC04ADB,112的区别 |
