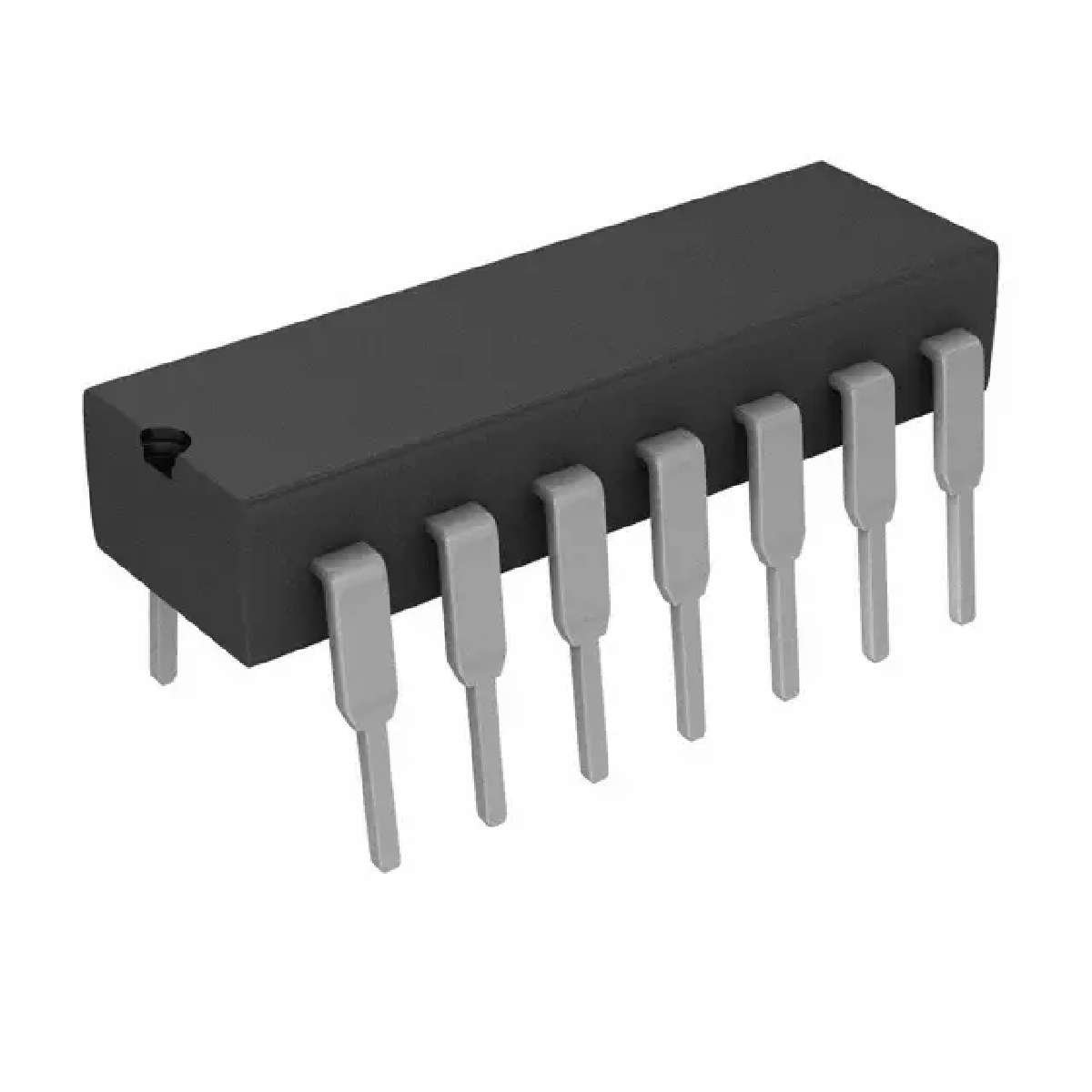

SN74AHCT04NE4

六路反向器 HEX INVERTERS

Description

The SNx4AHCT04 devices contain six independent inverters. These devices perform the Boolean function Y = A.

Features

• Inputs are TTL-Voltage Compatible

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESD Protection Exceeds JESD 22

   – 2000-V Human-Body Model A114-A

   – 200-V Machine Model A115-A

   – 1000-V Charged-Device Model C101

• On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.

Applications

• Servers

• Network Switches

• Telecom Infrastructures

• Tests and Measurements
