SN74HCT08NE4

四路2输入正与门 QUADRUPLE 2-INPUT POSITIVE-AND GATES

description/ordering information

These devices contain four independent 2-input AND gates. They perform the Boolean function Y= A•B or Y=A+B in positive logic.

Operating Voltage Range of 4.5 V to 5.5 V

Outputs Can Drive Up To 10 LSTTL Loads

Low Power Consumption, 20-µA Max ICC

Typical tpd = 13 ns

±4-mA Output Drive at 5 V

Low Input Current of 1 µA Max

Inputs Are TTL-Voltage Compatible

得捷:
IC GATE AND 4CH 2-INP 14-DIP

立创商城:
SN74HCT08NE4

艾睿:

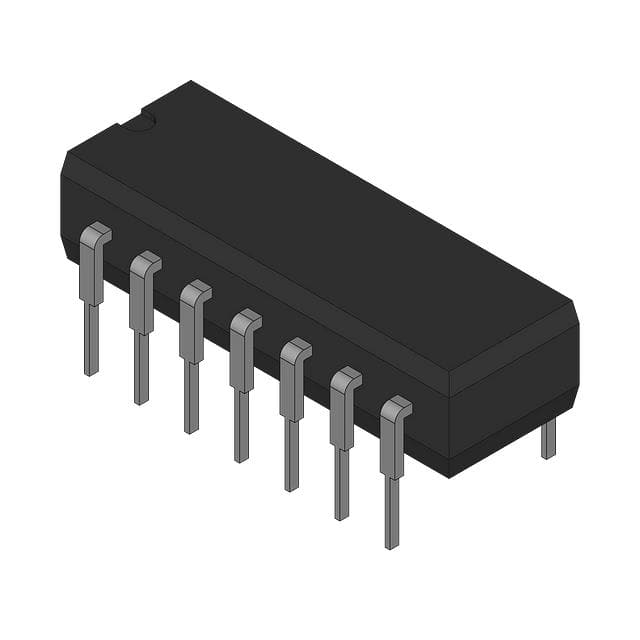

AND Gate 4-Element 2-IN CMOS 14-Pin PDIP Tube

德州仪器TI:
4-ch, 2-input, 4.5-V to 5.5-V AND gates with TTL-compatible CMOS inputs
