SN74ALVC00PWRE4

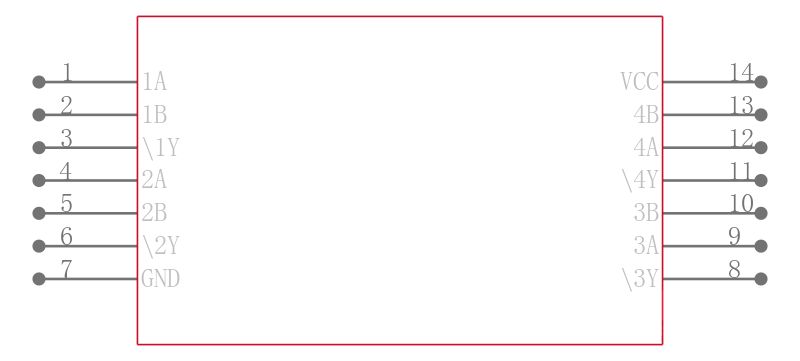

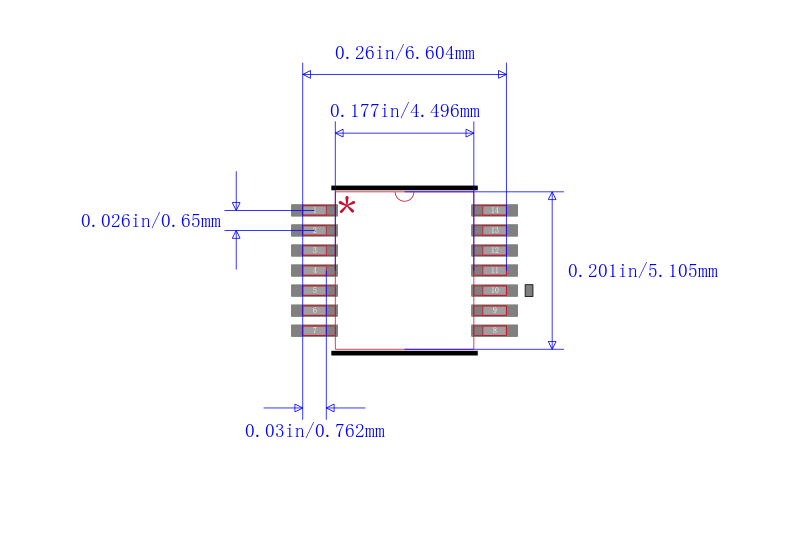

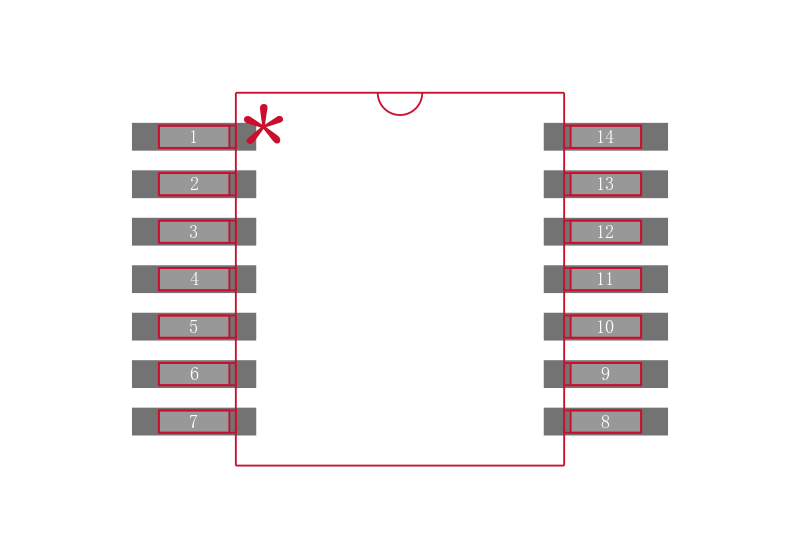

四路2输入正与非门 QUADRUPLE 2-INPUT POSITIVE-NAND GATE

DESCRIPON/ORDERING INFORMATION

This quadruple 2-input positive-NAND gate is designed for 1.65-V to 3.6-V VCC operation.

The SN74ALVC00 performs the Boolean function Y = A · B or Y = A + B in positive logic.

FEATURES

• Operates From 1.65 V to 3.6 V

• Max tpd of 3 ns at 3.3 V

• ±24-mA Output Drive at 3.3 V

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESD Protection Exceeds JESD 22

   – 2000-V Human-Body Model A114-A

   – 200-V Machine Model A115-A

   – 1000-V Charged-Device Model C101
