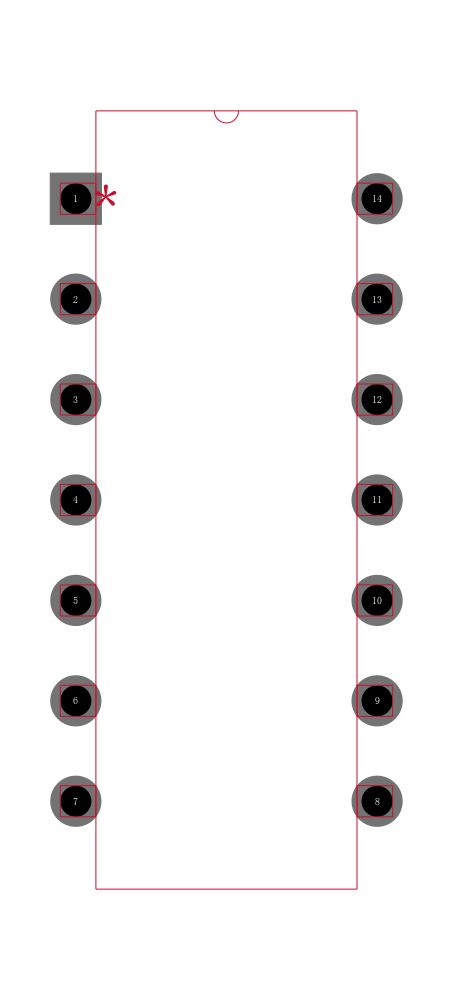

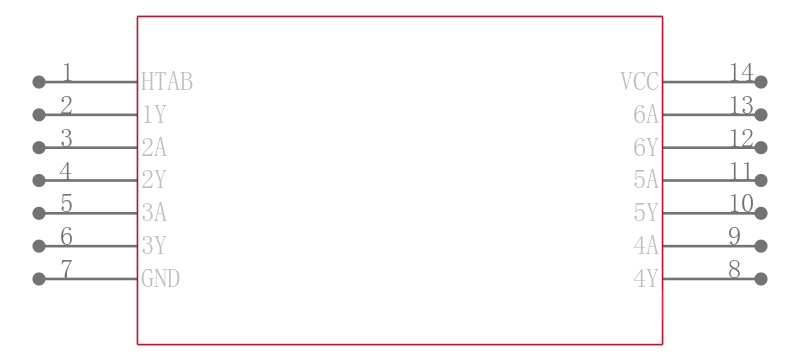

SN74HC05NE4

具有漏极开路输出六路反向器 HEX INVERTERS WITH OPEN-DRAIN OUTPUTS

description/ordering information

The ’HC05 devices contain six independent inverters. They perform the Boolean function Y = Ain positive logic. The open-drain outputs require pullup resistors to perform correctly. They may be

connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.

Wide Operating Voltage Range of 2 V to 6 V

Outputs Can Drive Up To 10 LSTTL Loads

Low Power Consumption, 20-µA Max ICC

Typical tpd = 8 ns

±4-mA Output Drive at 5 V

Low Input Current of 1 µA Max
