SN74ACT14DRG4

六路施密特触发反相器 14-SOIC -40 to 85

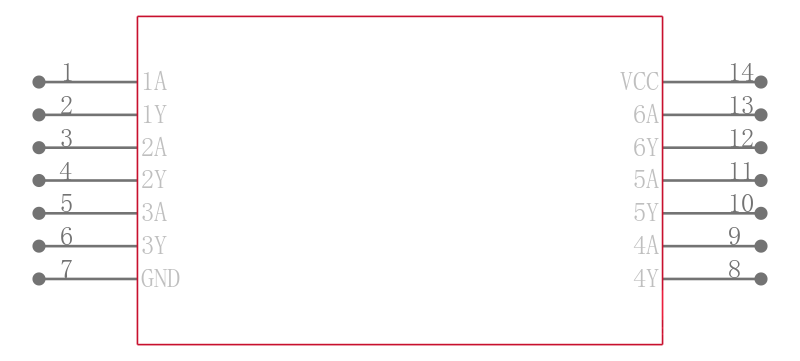

description/ordering information

These Schmitt-trigger devices contain six independent inverters. They perform the Boolean function Y = A. Because of the Schmitt action, they have different input threshold levels for positive-going VT+ and for negative-going VT− signals.

These circuits are temperature compensated and can be triggered from the slowest of input ramps and still give clean, jitter-free output signals. They also have a greater noise margin than conventional inverters.

• 4.5-V to 5.5-V VCC Operation

• Inputs Accept Voltages to 5.5 V

• Max tpd of 11 ns at 5 V

• Inputs Are TTL-Voltage Compatible
