SDR0604-271KL

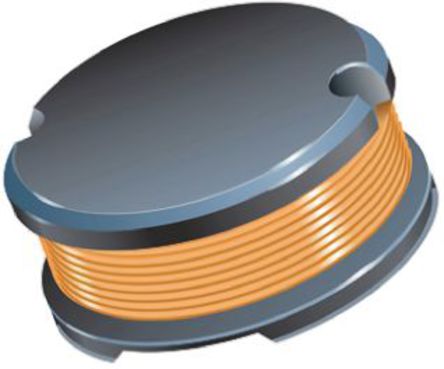

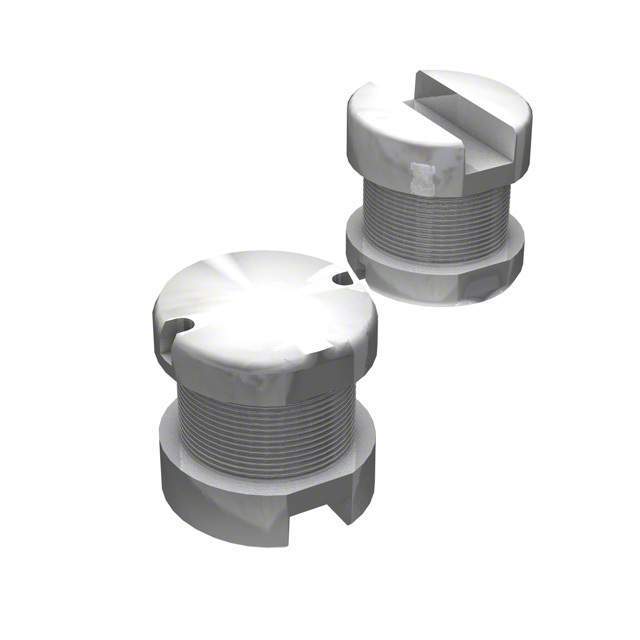

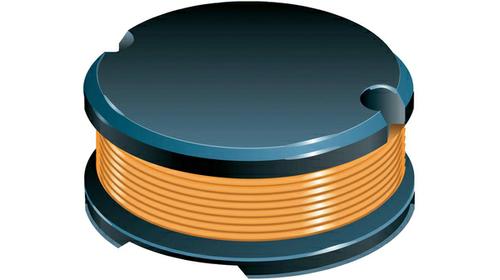

BOURNS  SDR0604-271KL  表面贴装功率电感器, SDR0604系列, 270 µH, ± 10%, 非屏蔽, 1.88 ohm, 320 mA

SDR0604 系列线绕扼流圈

提供 E12 系列

直径小，最大仅 5.8mm

剖面 4.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 270UH 320MA 1.88OHM SM

欧时:
### SDR0604 系列线绕扼流圈提供 E12 系列 直径小，最大仅 5.8mm 剖面 4.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:
功率电感SMD, 270 µH, 320 mA, 非屏蔽, 400 mA, SDR0604系列, 5.8mm x 5.8mm x 4.8mm

艾睿:
An ideal space-saving electronic component is this power SDR0604-271KL surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 4M Hz. This product is 4.8 mm tall with a diameter of 5.8 mm. This SMD inductor has a maximum DC current of 320m A with a maximum resistance of 1.88 Ohm. It has a tolerance of 10%. This device is made with wirewound technology. It has an inductance of 270u H.

Allied Electronics:
SDR0604 WireWound SMDinductor w/ FerriteCore; 270 uH +/-10%WireWound 320mA Idc

安富利:
Ind Power Wirewound 270uH 10% 1KHz 26Q-Factor Ferrite 320mA T/R

Verical:
Inductor Power Unshielded Wirewound 270uH 10% 1KHz 26Q-Factor Ferrite 0.32A 1.88Ohm DCR Automotive T/R

Electro Sonic:
Inductor Power Wirewound 270uH 10% 1KHz 26Q-Factor Ferrite 320mA 1.88Ohm DCR Automotive T/R
