六角施密特触发反相器 HEX SCHMITT-TRIGGER INVERTERS
inverting Schmitt triggers from Texas Instruments are designed specifically to clean up noisy analog signals and convert them into more manageable digital signals. With a Schmitt trigger output, this is power management at its best. This inverting Schmitt trigger has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 2.00V ~ 6.00V
电路数 6
位数 6
传送延迟时间 21.0 ns
电压波节 6.00 V, 5.00 V, 2.00 V
逻辑门个数 6
输出电流驱动 -1.00 mA
输入数 6
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14

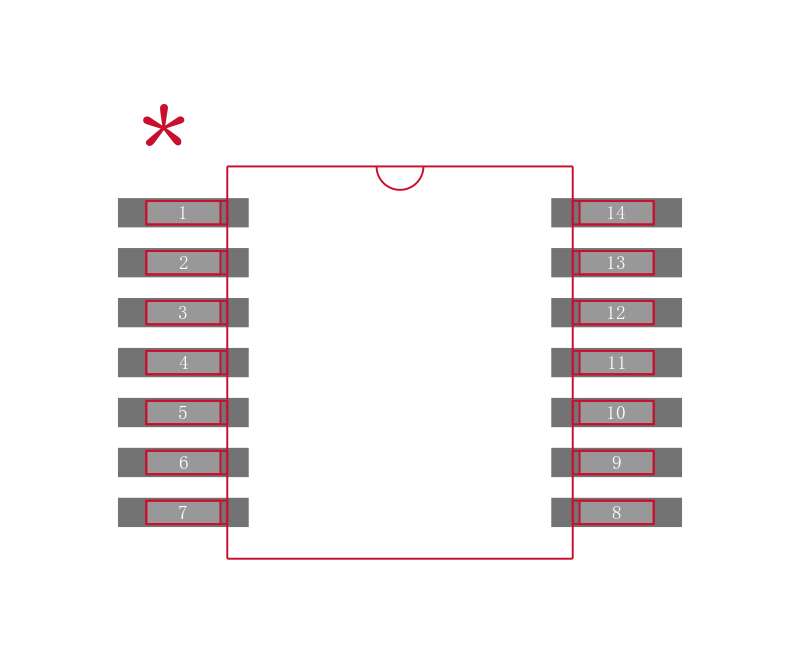

封装 TSSOP-14
封装 TSSOP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74HC14QPWRG4Q1 TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC14PWR 德州仪器 | 类似代替 | SN74HC14QPWRG4Q1和SN74HC14PWR的区别 |
SN74HC14QPWRQ1 德州仪器 | 类似代替 | SN74HC14QPWRG4Q1和SN74HC14QPWRQ1的区别 |
SN74HC14PW 德州仪器 | 类似代替 | SN74HC14QPWRG4Q1和SN74HC14PW的区别 |
