SDR0603-100ML

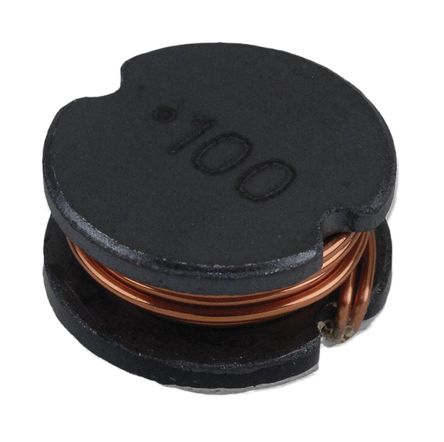

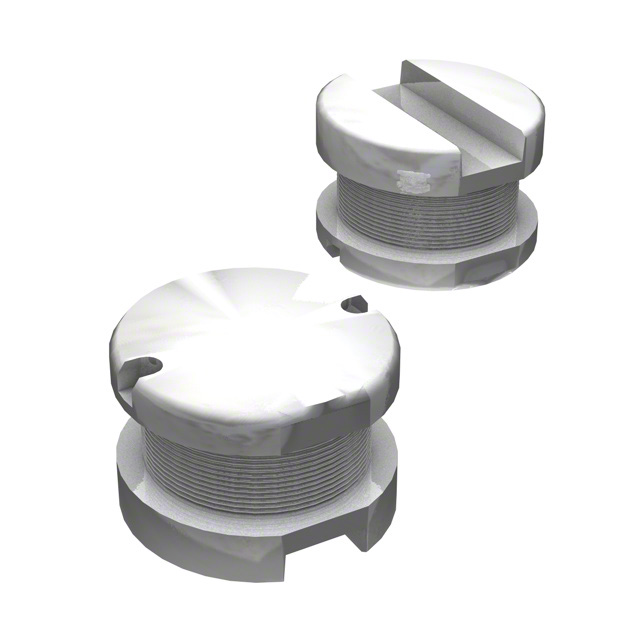

BOURNS  SDR0603-100ML  表面贴装功率电感器, SDR0603系列, 10 µH, ± 20%, 非屏蔽, 0.15 ohm, 1.14 A

SDR0603 系列线绕扼流圈

提供 E12 系列

小型设计，最大直径仅 5.8 mm

超薄 3.9 mm

符合 RoHS

直流/直流转换器和电源的输入/输出应用，用于：

便携式通信设备、便携式摄像机、LCD TV 和汽车收音机

得捷:
FIXED IND 10UH 1.14A 150MOHM SMD

立创商城:
10uH ±20% 1.14A 150mΩ

欧时:
### SDR0603 系列线绕扼流圈提供 E12 系列 小型设计，最大直径仅 5.8 mm 超薄 3.9 mm 符合 RoHS 直流/直流转换器和电源的输入/输出应用，用于： 便携式通信设备、便携式摄像机、LCD TV 和汽车收音机 ### Bourns 非标准表面安装电感器（扼流圈）

贸泽:
固定电感器 10uH 20% SMD 0603

e络盟:
功率电感SMD, 10 µH, 1.14 A, 非屏蔽, 1.4 A, SDR0603系列, 5.8mm x 5.8mm x 3.9mm

艾睿:
Save valuable space on a PCB with this power SDR0603-100ML surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 3.9 mm tall with a diameter of 5.8 mm. It has an inductance of 10u H. It has a tolerance of 20%. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 1.14 A with a maximum resistance of 150m Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 34M Hz.

安富利:
Ind Power Wirewound 10uH 20% 1KHz 24Q-Factor Ferrite 1.14A T/R

Chip1Stop:
Inductor Power Wirewound 10uH 20% 1KHz 24Q-Factor Ferrite 1.14A 150mOhm DCR T/R

Verical:
Inductor Power Wirewound 10uH 20% 1KHz 24Q-Factor Ferrite 1.14A 0.15Ohm DCR Automotive T/R

Newark:
# BOURNS  SDR0603-100ML  Surface Mount Power Inductor, SDR0603 Series, 10 µH, 1.14 A, 1.4 A, Unshielded, 0.15 ohm

Online Components:
Inductor Power Wirewound 10uH 20% 1KHz 24Q-Factor Ferrite 1.14A 150mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Wirewound 10uH 20% 1KHz 24Q-Factor Ferrite 1.14A 150mOhm DCR Automotive T/R
