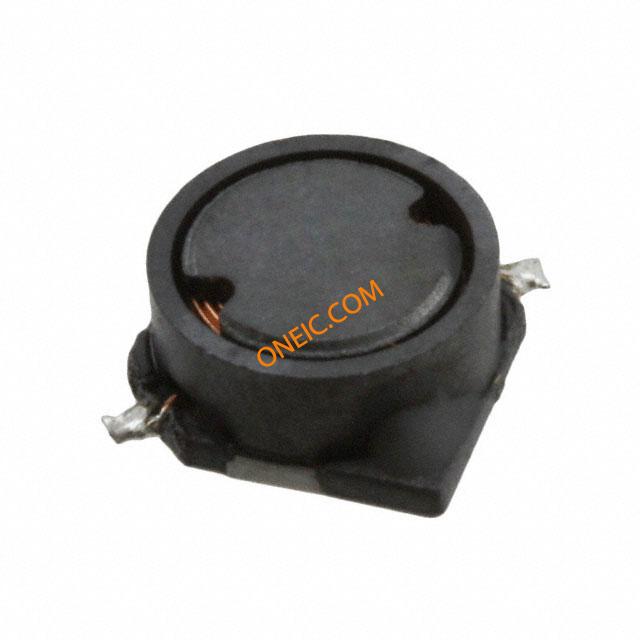

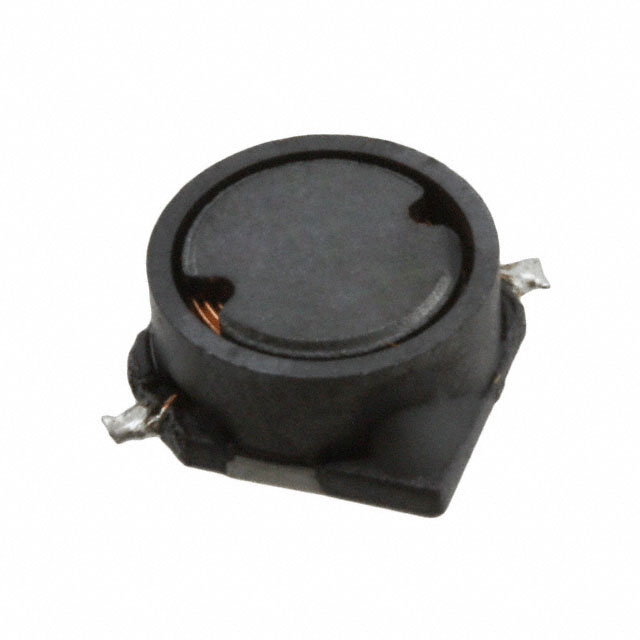

SRR7032-3R3M

BOURNS  SRR7032-3R3M  表面贴装功率电感器, SRR7032系列, 3.3 µH, ± 20%, 屏蔽, 0.027 ohm, 2.4 A

SRR7032 系列磁性屏蔽线绕器

Bourns SRR7032 系列贴片屏蔽式功率电感器。 应用包括直流/直流转换器和电源的输入/输出，适用于：便携式通信设备；摄像机；液晶电视；汽车收音机

得捷:
FIXED IND 3.3UH 2.4A 27 MOHM SMD

欧时:
Bourns SRR7032 系列 屏蔽 铁氧体芯材 3.3 μH 绕线贴片电感器 SRR7032-3R3M, 2.4A Idc Q:16

贸泽:
固定电感器 3.3uH 20% SMD 7032

e络盟:
功率电感SMD, 3.3 µH, 2.4 A, 屏蔽, 2.2 A, SRR7032系列, 7mm x 7mm x 3.2mm

艾睿:
Make any circuit look clean and compact using this power SRR7032-3R3M surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has an inductance of 3.3u H. This SMD inductor has a maximum DC current of 2.4 A with a maximum resistance of 27m Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 55MTyp Hz. It has a tolerance of 20%. This product is 7.3 mm long, 3.4 mm tall and 7.3 mm deep. This device is made with wirewound technology.

安富利:
Ind Power Shielded 3.3uH 20% 1KHz 16Q-Factor Ferrite 2.4A T/R

Verical:
Inductor Power Shielded Wirewound 3.3uH 20% 1KHz 16Q-Factor Ferrite 2.4A 0.027Ohm DCR T/R

MASTER:
Inductor Power Shielded Wirewound 3.3uH 20% 1KHz 16Q-Factor Ferrite 2.4A 27mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 3.3uH 20% 1KHz 16Q-Factor Ferrite 2.4A 27mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 3.3uH 20% 1KHz 16Q-Factor Ferrite 2.4A 27mOhm DCR T/R
