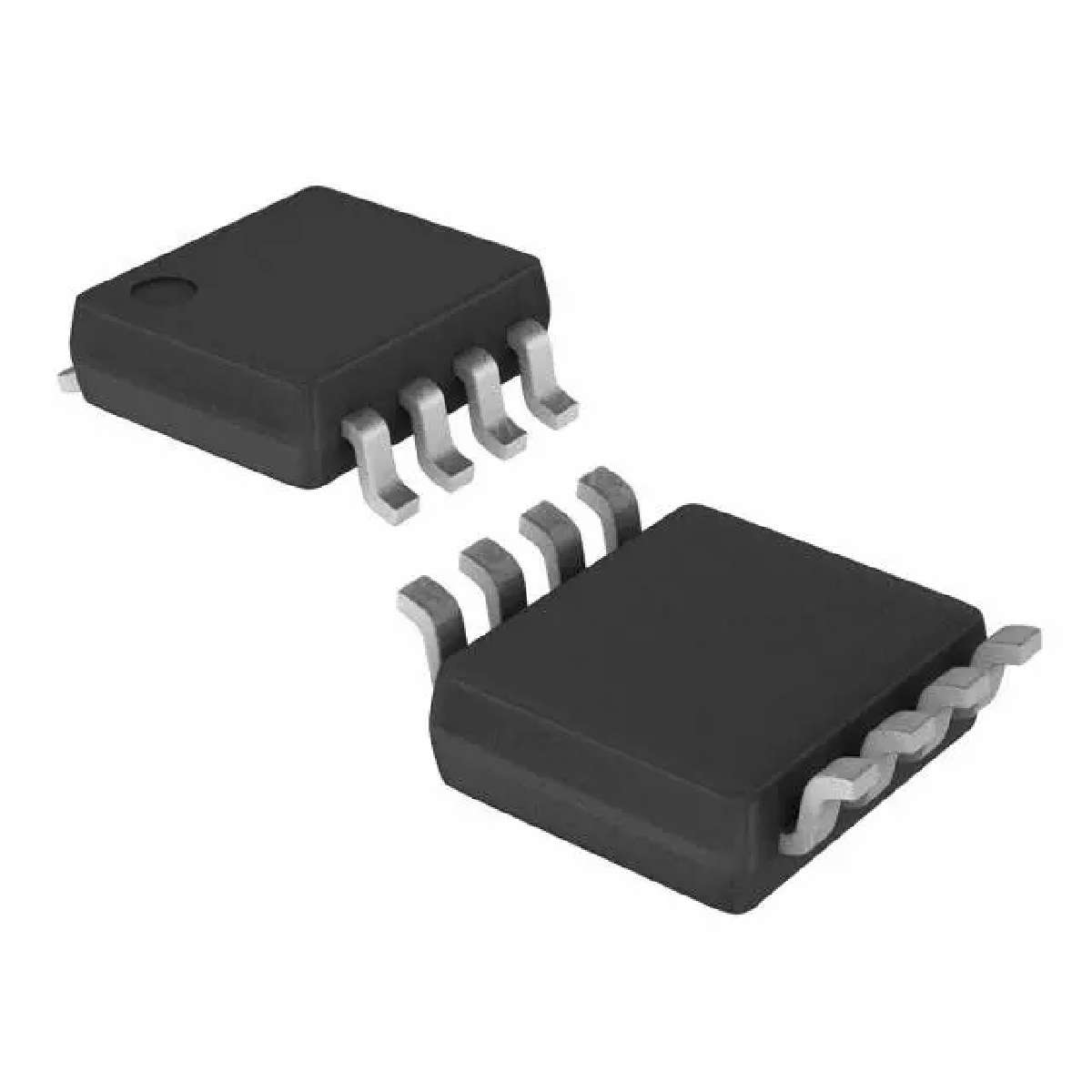

SN74LVC2G32DCURE4

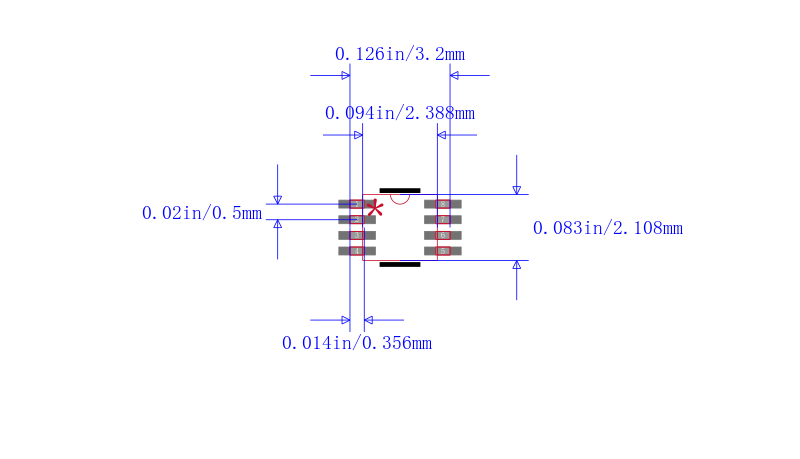

双路 2 输入正或门 8-VSSOP -40 to 125

Description

This dual 2-input positive-OR gate is designed for 1.65-V to 5.5-V VCC operation.

The SN74LVC2G32 device performs the Boolean function Y =  A + B or Y =  A • B in positive logic.

NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

Features

• Available in the Texas Instruments NanoFree™ Package

• Supports 5-V VCC Operation

• Inputs Accept Voltages to 5.5 V

• Maximum tpd of 3.8 ns at 3.3 V

• Low Power Consumption, 10-µA Maximum ICC

• ±24-mA Output Drive at 3.3 V

• Typical VOLPOutput Ground Bounce

  <0.8 V at VCC= 3.3 V, TA= 25°C

• Typical VOHV Output VOH Undershoot

  >2 V at VCC= 3.3 V, TA = 25°C

• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection

• Can Be Used as a Down Translator to Translate Inputs From a Maximum of 5.5 V Down to the VCC Level

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESD Protection Exceeds JESD 22

– 2000-V Human Body Model A114-A

– 1000-V Charged-Device Model C101

Applications

• Down Translation

• Logical OR
