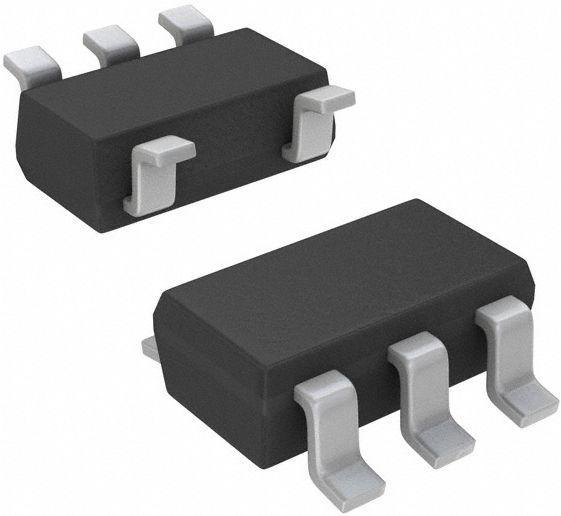

TEXAS INSTRUMENTS SN74AHCT1G00DCKT 与非门, ACHT系列, 2输入, 1门, 8 mA, 4.5V至5.5V, SC-70-5
Operating Range of 4.5 V to 5.5 V
Max tpd of 7.1 ns at 5 V
Low Power Consumption, 10-µA Max ICC
±8-mA Output Drive at 5 V
Inputs Are TTL-Voltage Compatible
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model A114-A
– 200-V Machine Model A115-A
– 1000-V Charged-Device Model C101
得捷:
IC GATE NAND 1CH 2-INP SC70-5
立创商城:
SN74AHCT1G00DCKT
德州仪器TI:
Single 2-input, 4.5-V to 5.5-V NAND gate with TTL-compatible CMOS inputs
贸泽:
Logic Gates Single 2-Input Analog Switch
e络盟:
与非门, 74AHCT1G00, 2输入, 8mA, 4.5V至5.5V, SC-70-5
艾睿:
SN74AHCT1G00DCKT logic gates from Texas Instruments are designed specifically to be interconnected and create a variety of different logic-based circuits. This gate has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
安富利:
NAND Gate 1-Element 2-IN CMOS 5-Pin SC-70 T/R
Chip1Stop:
NAND Gate 1-Element 2-IN CMOS 5-Pin SC-70 T/R
Verical:
NAND Gate 1-Element 2-IN CMOS 5-Pin SC-70 T/R
Newark:
# TEXAS INSTRUMENTS SN74AHCT1G00DCKT LOGIC, POS NAND, SINGLE 2 I/P, 5SC70
力源芯城:
单2输入正与非门
Win Source:
IC GATE NAND 1CH 2-INP SC70-5 / NAND Gate IC 1 Channel SC-70-5
电源电压DC 4.50V min
输出接口数 1
输出电流 8 mA
电路数 1
针脚数 5
位数 1
传送延迟时间 9.00 ns
电压波节 5.00 V
逻辑门个数 1
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 5

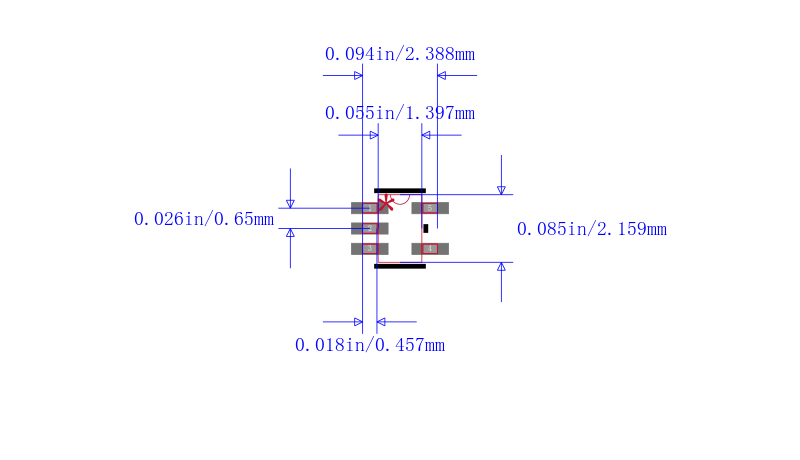

封装 SC-70-5
长度 2 mm
宽度 1.25 mm
高度 0.9 mm
封装 SC-70-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AHCT1G00DCKT TI 德州仪器 | 当前型号 | 当前型号 |
SN74AHCT1G00DCKR 德州仪器 | 类似代替 | SN74AHCT1G00DCKT和SN74AHCT1G00DCKR的区别 |
74AHCT1G00DCKTG4 德州仪器 | 类似代替 | SN74AHCT1G00DCKT和74AHCT1G00DCKTG4的区别 |
74AHCT1G00DCKRG4 德州仪器 | 类似代替 | SN74AHCT1G00DCKT和74AHCT1G00DCKRG4的区别 |
