六角施密特触发反相器 HEX SCHMITT-TRIGGER INVERTERS
The inverting Schmitt trigger, developed by Texas Instruments, is a great way to remove noise from an analog signal and essentially convert it into a digital signal. With a Schmitt trigger output, this is power management at its best. This inverting Schmitt trigger has an operating temperature range of 0 °C to 70 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V.
电源电压DC 4.75V ~ 5.25V
输出电流 8 mA
电路数 6
位数 6
传送延迟时间 22.0 ns
电压波节 5.00 V
逻辑门个数 6
输出电流驱动 -50.0 µA
输入数 6
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount

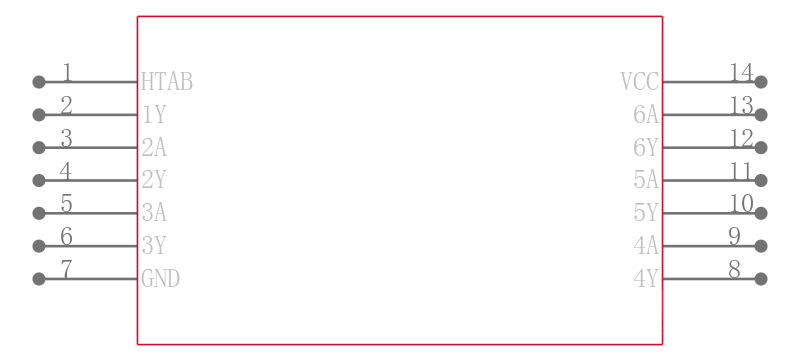

引脚数 14
封装 SOIC-14
封装 SOIC-14
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LS14DE4 TI 德州仪器 | 当前型号 | 当前型号 |
SN74LS14DR 德州仪器 | 完全替代 | SN74LS14DE4和SN74LS14DR的区别 |
SN74LS14D 德州仪器 | 类似代替 | SN74LS14DE4和SN74LS14D的区别 |
