SN74LVC1G132DCKT

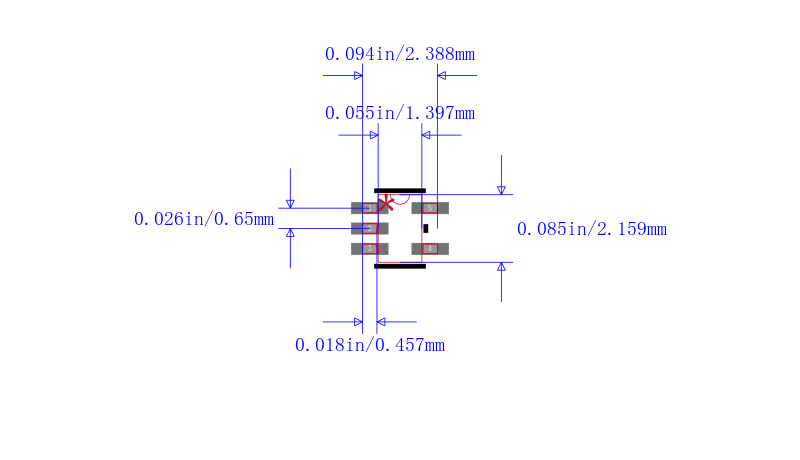

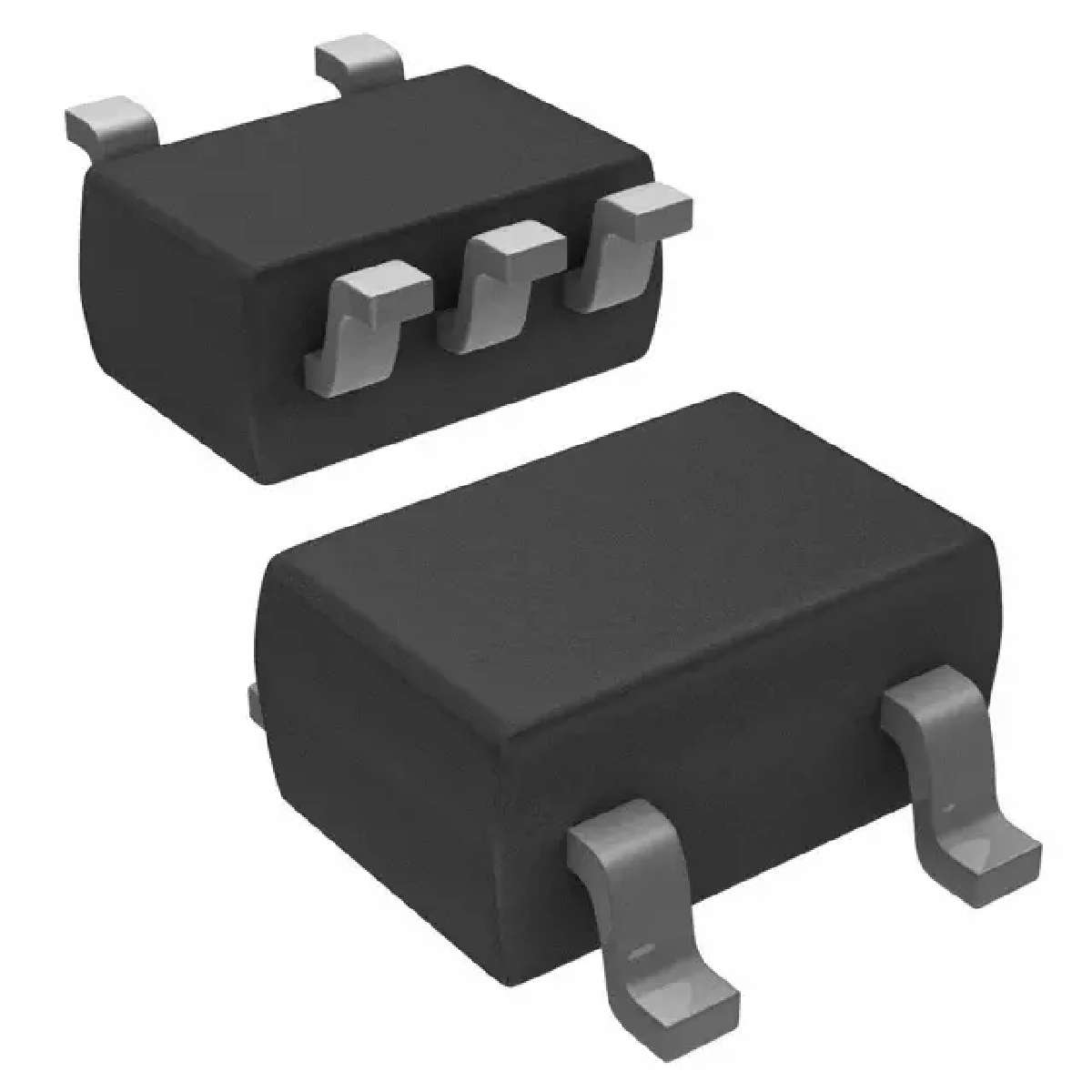

TEXAS INSTRUMENTS  SN74LVC1G132DCKT  与非门, LVC系列, 施密特触发, 1门, 2输入, 32 mA, 1.65V至5.5V, SC-70-5

The is a single 2-input NAND Gate with Schmitt-trigger Input designed for 1.65 to 5.5V VCC operation. The device performs the Boolean function Y = A • B\ or Y = A\ + B\ in positive logic. Because of Schmitt action, this device has different input threshold levels for positive-going VT+ and negative-going VT- signals. This device can be triggered from the slowest of input ramps and still give clean jitter-free output signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

.

Supports 5V VCC operation

.

Inputs accept voltages to 5.5V

.

Maximum tpd of 3.6ns at 3.3V

.

10µA Maximum ICC low power consumption

.

±24mA Output drive at 3.3V

.

Ioff supports partial-power-down mode operation

.

Latch-up performance exceeds 100mA per JESD 78, Class II

.

ESD protection exceeds JESD 22

.

Green product and no Sb/Br
