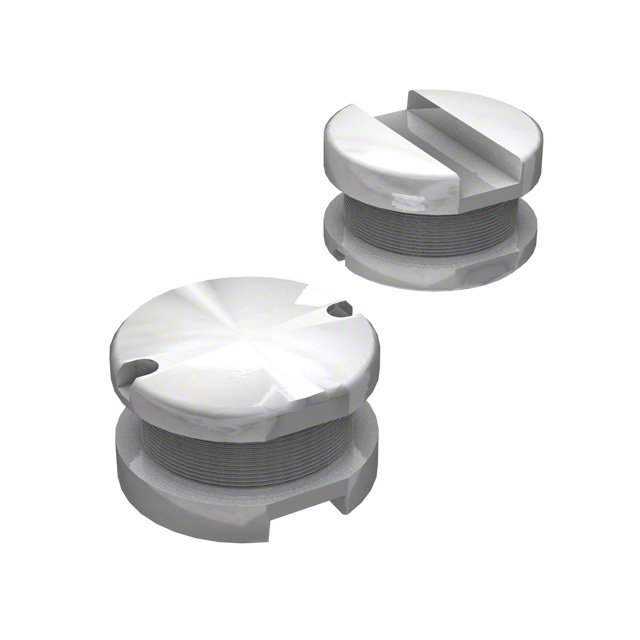

BOURNS SDR0503-270ML 表面贴装功率电感器, SDR0503系列, 27 µH, ± 20%, 非屏蔽, 0.32 ohm, 800 mA
27µH Unshielded Wirewound Inductor 800mA 320mOhm Max Nonstandard
得捷:
FIXED IND 27UH 800MA 320MOHM SMD
贸泽:
Fixed Inductors 27uH 20% SMD 0503
e络盟:
功率电感SMD, 27 µH, 800 mA, 非屏蔽, 1 A, SDR0503系列, 5mm x 4.8mm x 3mm
艾睿:
This power SDR0503-270ML surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 5.3 mm long, 3.3 mm tall and 5.1 mm deep. It has an inductance of 27u H. This device utilizes wirewound technology. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 20M Hz. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 800m A with a maximum resistance of 320m Ohm.
安富利:
Ind Power Wirewound 27uH 20% 1KHz 20Q-Factor Ferrite 800mA T/R
Newark:
# BOURNS SDR0503-270ML Surface Mount Power Inductor, SDR0503 Series, 27 µH, 800 mA, 1 A, Unshielded, 0.32 ohm
Electro Sonic:
Inductor Power Wirewound 27uH 20% 1KHz 20Q-Factor Ferrite 800mA 320mOhm DCR Automotive T/R
额定电流 800 mA
容差 ±20 %
电感 27 µH
自谐频率 20 MHz
Q值 20.0
电感公差 ±20 %
测试频率 1 kHz
电阻DC) ≤320 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.32 Ω
安装方式 Surface Mount
引脚数 2

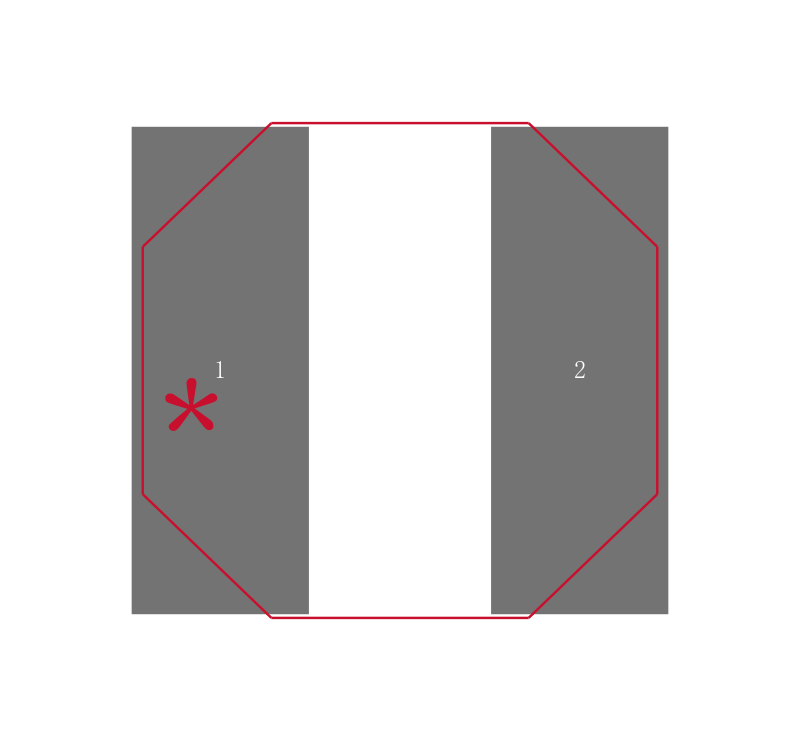

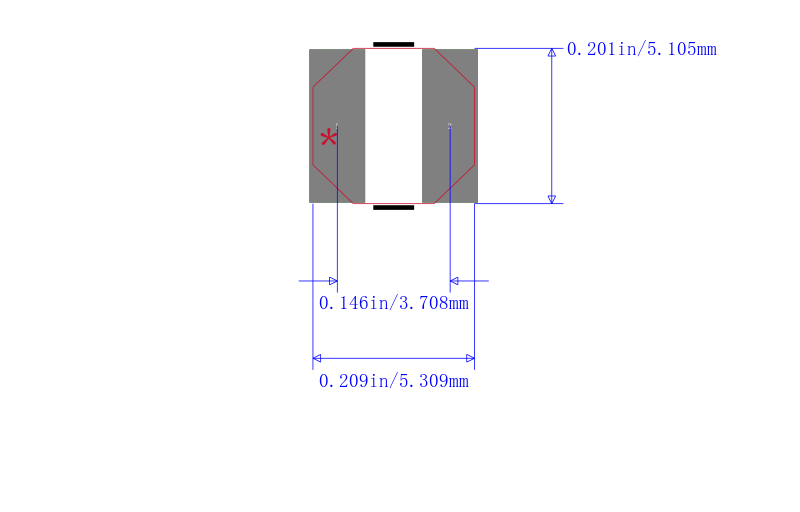

封装 5mm x 4.8mm x 3mm
高度 3.3 mm
封装 5mm x 4.8mm x 3mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDR0503-270ML Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SDR0503-392JL 伯恩斯 | 类似代替 | SDR0503-270ML和SDR0503-392JL的区别 |
SDR0503-270M 伯恩斯 | 功能相似 | SDR0503-270ML和SDR0503-270M的区别 |
