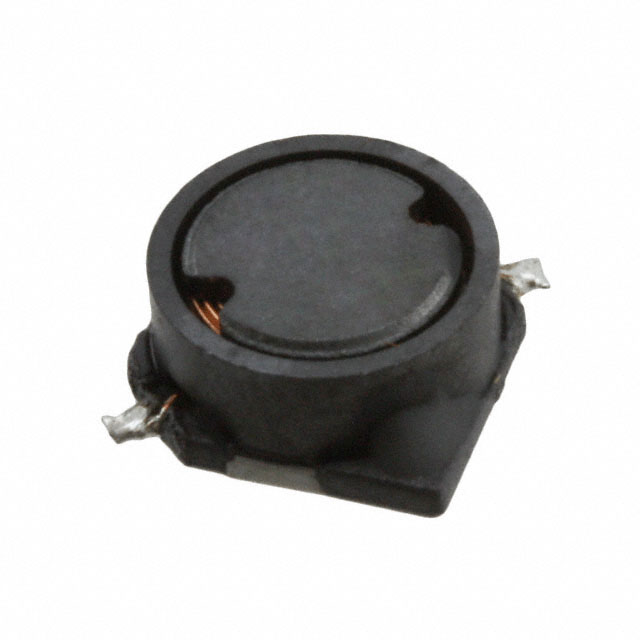

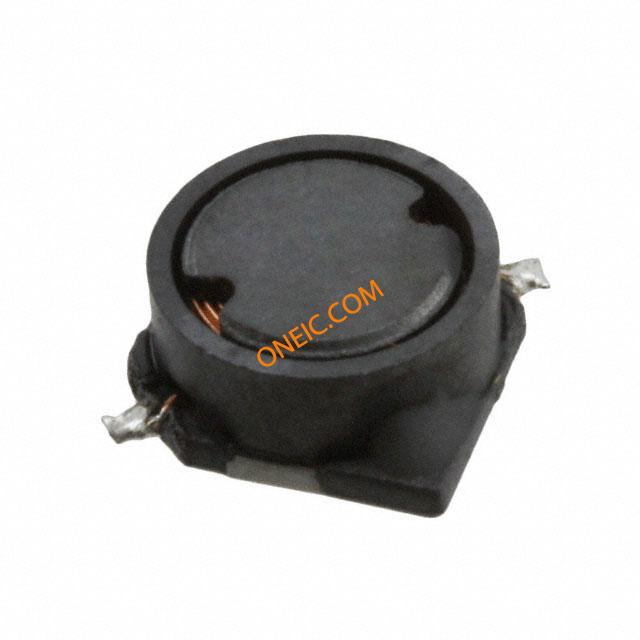

SRR7032-680M

BOURNS  SRR7032-680M  表面贴装功率电感器, SRR7032系列, 68 µH, ± 20%, 屏蔽, 0.38 ohm, 600 mA

68 µH 屏蔽 绕线 器 600 mA 380 毫欧最大 非标准

立创商城:
68uH ±20% 600mA 380mΩ

得捷:
FIXED IND 68UH 600MA 380MOHM SMD

e络盟:

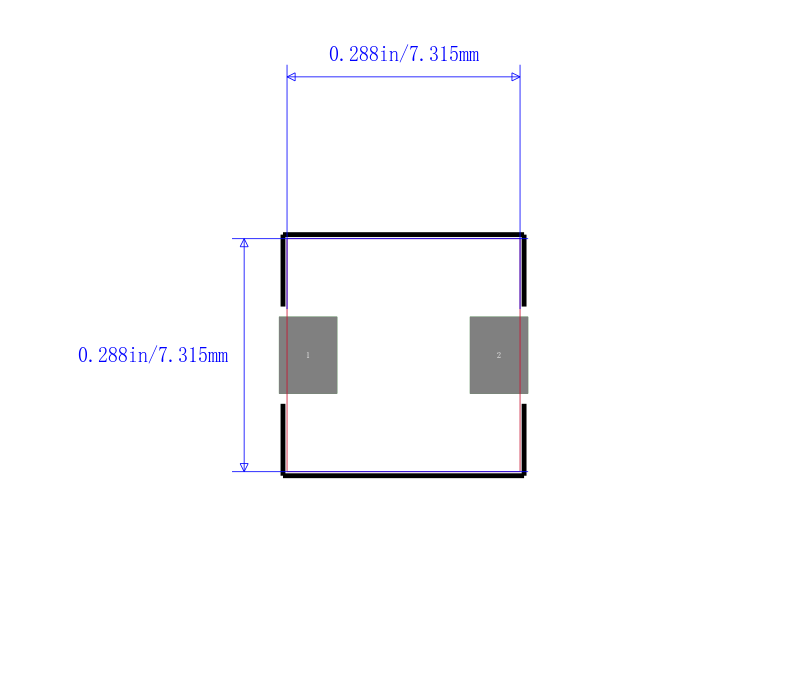

功率电感SMD, 68 µH, 600 mA, 屏蔽, 700 mA, SRR7032系列, 7mm x 7mm x 3.2mm

艾睿:
This power SRR7032-680M surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has an inductance of 68u H. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 16MTyp Hz. It has a tolerance of 20%. This product is 7.3 mm long, 3.4 mm tall and 7.3 mm deep. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 380m Ohm. This device utilizes wirewound technology.

安富利:
Ind Power Shielded Wirewound 68uH 20% 100KHz 22Q-Factor Ferrite 600mA T/R

Chip1Stop:
Ind Power Shielded Wirewound 68uH 20% 100KHz 22Q-Factor Ferrite 600mA T/R

Verical:
Inductor Power Shielded Wirewound 68uH 20% 1KHz 22Q-Factor Ferrite 600mA 380mOhm DCR T/R

MASTER:
Inductor Power Shielded Wirewound 68uH 20% 1KHz 22Q-Factor Ferrite 600mA 380mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 68uH 20% 1KHz 22Q-Factor Ferrite 600mA 380mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 68uH 20% 1KHz 22Q-Factor Ferrite 600mA 380mOhm DCR T/R
