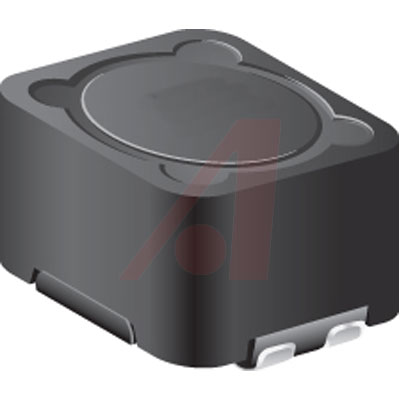

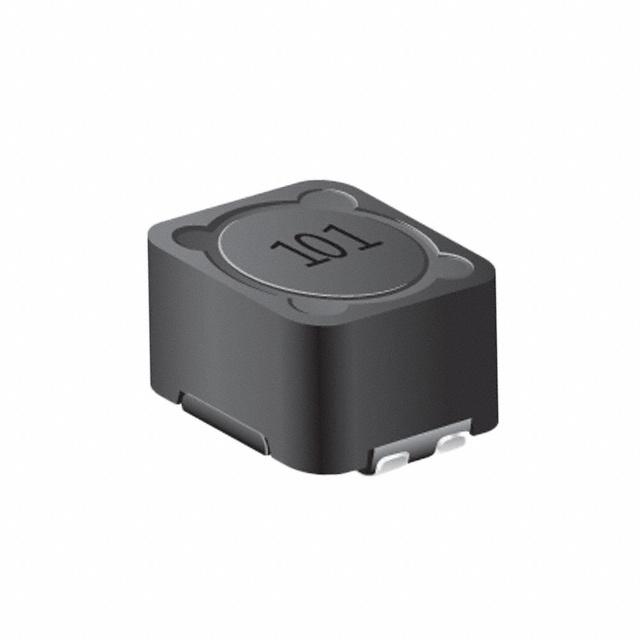

BOURNS SRF1280A-4R7Y 电感, 耦合, 4.7UH, 30%, 8.25A
屏蔽 2 线圈器阵列 18.8 µH 电感 - 串联连接 4.7 µH 电感 - 并联连接 13.5 毫欧最大 直流电阻 DCR - 并联 8.25 A 非标准
得捷:
INDUCT ARRAY 2 COIL 4.7UH SMD
e络盟:
电感, 耦合, 4.7 µH, 30%, 0.0135 ohm, 8.25 A, 12.5mm x 12.5mm x 8mm
艾睿:
This power SRF1280A-4R7Y surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 8.25|4.13 A with a maximum resistance of 13.5m|50m Ohm. This product is 12.5 mm long, 8 mm tall and 12.5 mm deep. It has an inductance of 4.7u|18.8u H. Its test frequency is 100K Hz.
Allied Electronics:
Dual-Winding Shielded Power Inductor; 4.7uH; 30%; SRF1280A
安富利:
Ind Power Shielded 4.7uH 30% 100KHz Ferrite 8.25A/4.13A T/R
Verical:
Inductor Power Shielded Wirewound 4.7uH/18.8uH 30% 100KHz Ferrite 8.25A/4.13A 0.0135Ohm/0.05Ohm DCR Automotive T/R
Newark:
# BOURNS SRF1280A-4R7Y INDUCTOR, COUPLED, 4.7UH, 30%, 8.25A
Online Components:
Inductor Power Shielded Wirewound 4.7uH/18.8uH 30% 100KHz Ferrite 8.25A/4.13A 13.5mOhm/50mOhm DCR Automotive T/R
Electro Sonic:
Inductor Power Shielded Wirewound 4.7uH/18.8uH 30% 100KHz Ferrite 8.25A/4.13A 13.5mOhm/50mOhm DCR Automotive T/R
额定电流 4.13 A
容差 ±30 %
电感 4.7 μH
电感公差 ±30 %
测试频率 100 kHz
电阻DC) 0.05 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 4
封装 SMD
长度 12.5 mm
宽度 12.5 mm
高度 8 mm
封装 SMD
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SRF1280A-4R7Y Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SRF1280-4R7Y 伯恩斯 | 功能相似 | SRF1280A-4R7Y和SRF1280-4R7Y的区别 |
