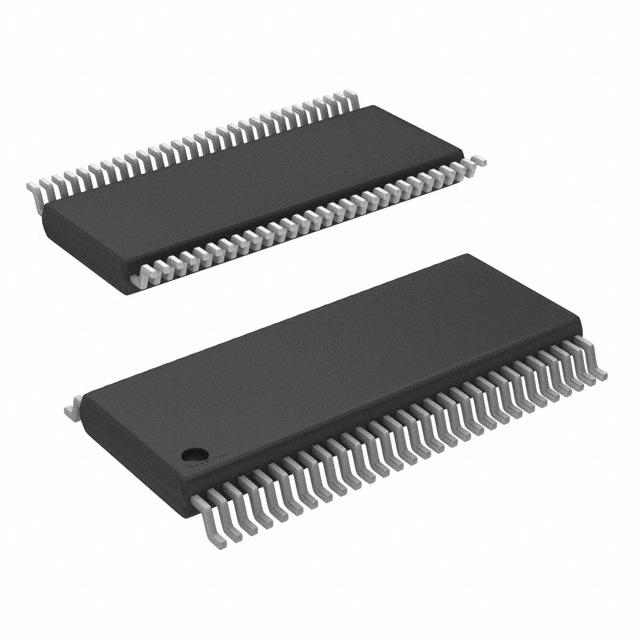

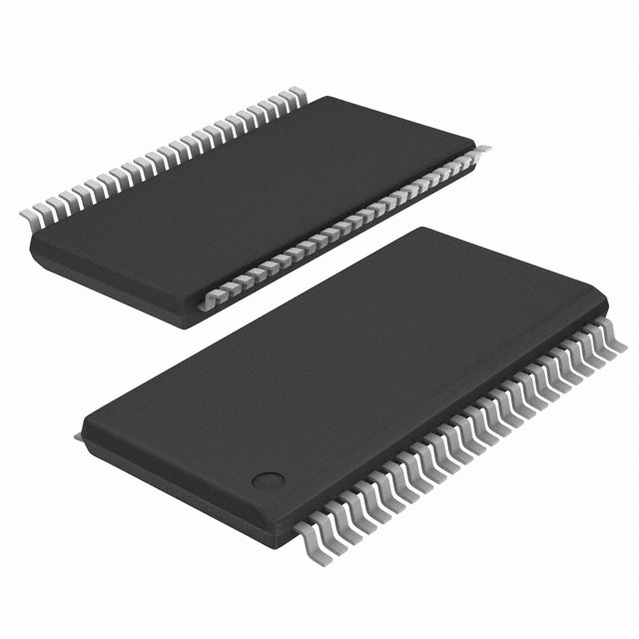

TEXAS INSTRUMENTS SN74AVC20T245DGVR SerDes, 56 引脚
Are you looking for a device that can regulate the input voltage into your circuit? Texas Instruments" level translator is the perfect solution for you. With a 3-state output, this is power management at its best. This level shifter has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.2 V, while its maximum is 3.6 V.
电源电压DC 1.20V ~ 3.60V
输出电流 12.0 mA
电路数 2
通道数 20

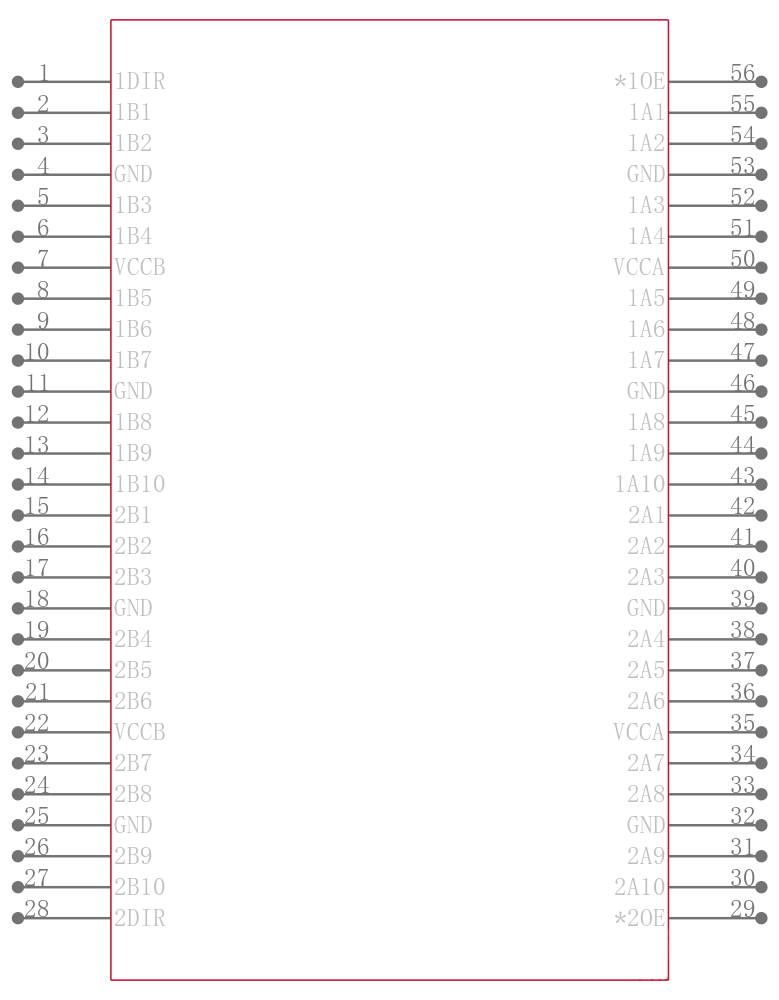

针脚数 56
位数 20
传送延迟时间 2.90 ns
输入数 20
工作温度Max 85 ℃
工作温度Min -40 ℃
输出通道数 1
电源电压 1.2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 56
封装 TVSOP-56
封装 TVSOP-56
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AVC20T245DGVR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AVC20T245DGGR 德州仪器 | 完全替代 | SN74AVC20T245DGVR和SN74AVC20T245DGGR的区别 |
SN74AVC20T245ZQLR 德州仪器 | 完全替代 | SN74AVC20T245DGVR和SN74AVC20T245ZQLR的区别 |
74AVC20T245DGGRG4 德州仪器 | 完全替代 | SN74AVC20T245DGVR和74AVC20T245DGGRG4的区别 |
