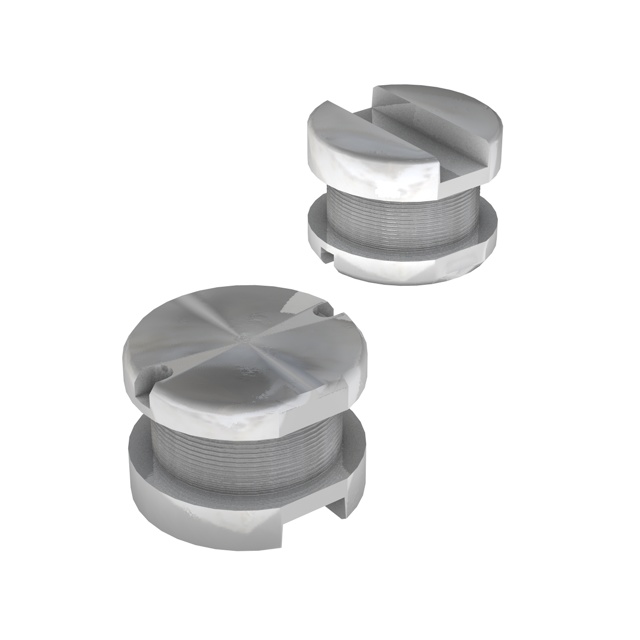

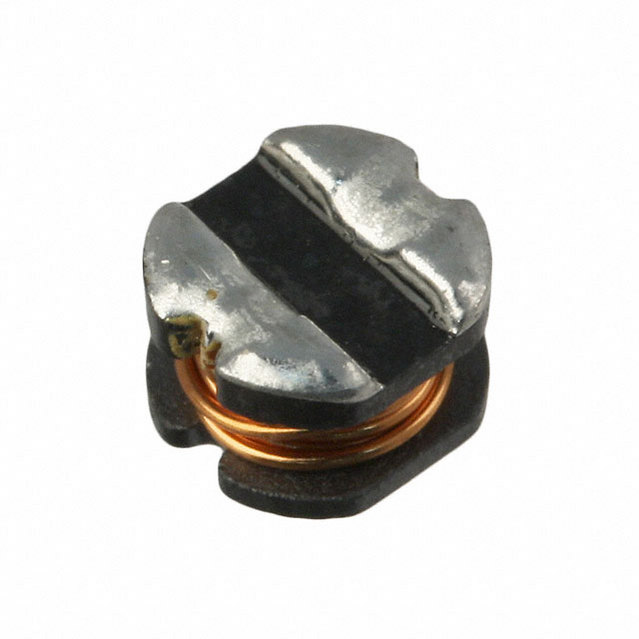

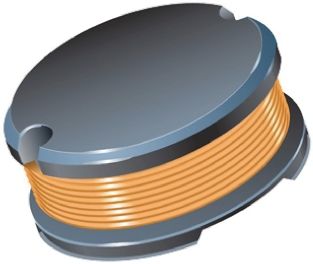

SDR0403-120ML

BOURNS  SDR0403-120ML  表面贴装功率电感器, SDR0403系列, 12 µH, ± 20%, 非屏蔽, 0.21 ohm, 1.05 A

SDR0403 系列线绕扼流圈

提供 E12 系列

薄型，仅 3.2mm

低值

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

立创商城:
12uH ±20% 1.05A 210mΩ

得捷:
FIXED IND 12UH 1.05A 210MOHM SMD

欧时:
Bourns SDR0403 系列 铁氧体芯材 12 μH 绕线贴片电感器 SDR0403-120ML, ±20%容差, 1.6A Idc Q:28

e络盟:
功率电感SMD, 12 µH, 1.05 A, 非屏蔽, 1.6 A, SDR0403系列, 4.5mm x 4mm x 3.2mm

艾睿:
This power SDR0403-120ML surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a tolerance of 20%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 30M Hz. This SMD inductor has a maximum DC current of 1.05 A with a maximum resistance of 210m Ohm. This product is 4.8 mm long, 3.5 mm tall and 4.3 mm deep. This device utilizes wirewound technology. It has an inductance of 12u H.

Allied Electronics:
SDR0403 WireWound SMDinductor w/ FerriteCore, 12 uH +/-20%WireWound 1.6A Idc Q:28

安富利:
Ind Power Wirewound 12uH 20% 1KHz 28Q-Factor Ferrite 1.05A T/R

Verical:
Inductor Power Unshielded Wirewound 12uH 20% 1KHz 28Q-Factor Ferrite 1.05A 0.21Ohm DCR T/R

MASTER:
Inductor Power Wirewound 12uH 20% 1KHz 28Q-Factor Ferrite 1.05A 0.21Ohm DCR T/R

Online Components:
Inductor Power Wirewound 12uH 20% 1KHz 28Q-Factor Ferrite 1.05A 210mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 12uH 20% 1KHz 28Q-Factor Ferrite 1.05A 0.21Ohm DCR T/R

Win Source:
12μH Unshielded Wirewound Inductor 1.05A 210 mOhm Max Nonstandard
