双非门 DUAL INVERTER GATE
Texas Instruments brings you their latest inverting Schmitt trigger, an edge-triggered device that can essentially save the state of the device until a new state is generated. This inverting Schmitt trigger has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
电源电压DC 1.65V ~ 5.50V
电路数 2
位数 2
传送延迟时间 3.00 ns
电压波节 5.00 V, 3.30 V, 2.50 V, 1.80 V
逻辑门个数 2
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 6

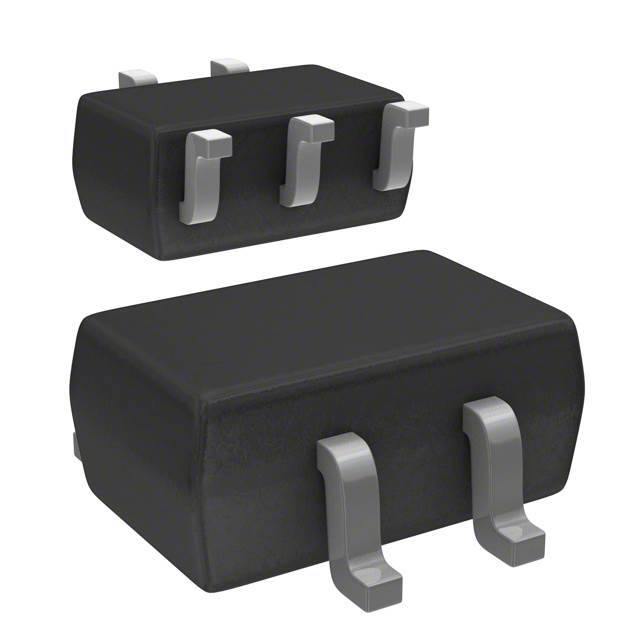

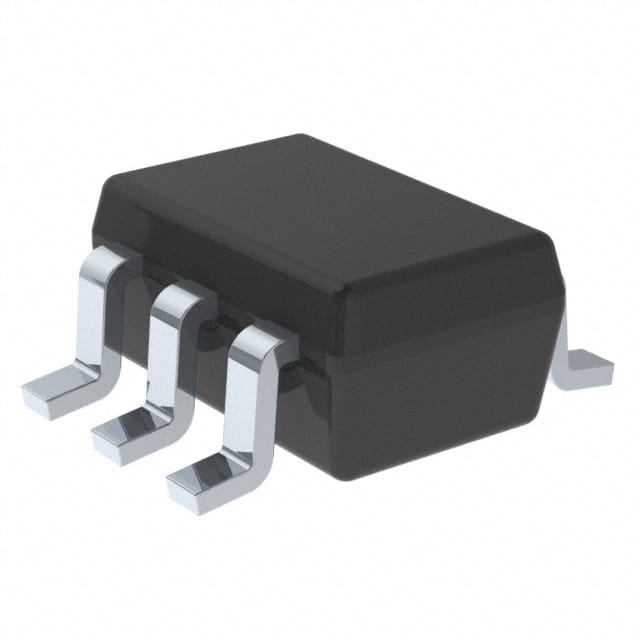

封装 SC-70-6
封装 SC-70-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC2GU04DCKT TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC2G04DCKR 德州仪器 | 类似代替 | SN74LVC2GU04DCKT和SN74LVC2G04DCKR的区别 |
SN74LVC2G06DCKR 德州仪器 | 类似代替 | SN74LVC2GU04DCKT和SN74LVC2G06DCKR的区别 |
SN74LVC2GU04DCKR 德州仪器 | 类似代替 | SN74LVC2GU04DCKT和SN74LVC2GU04DCKR的区别 |
