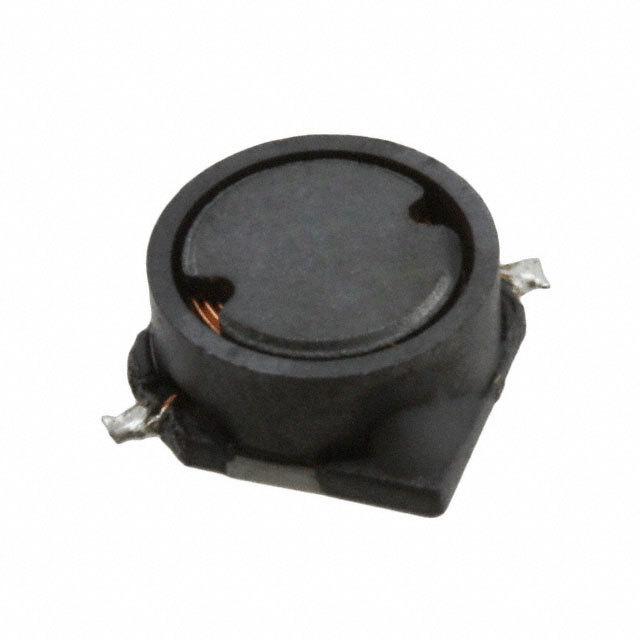

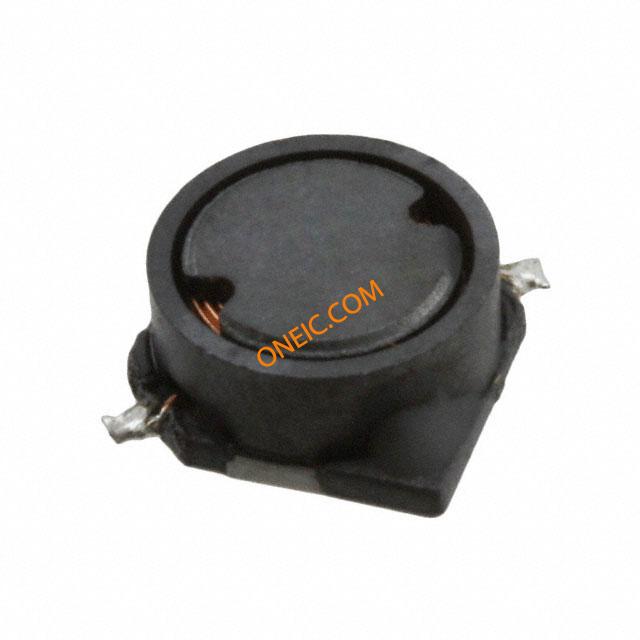

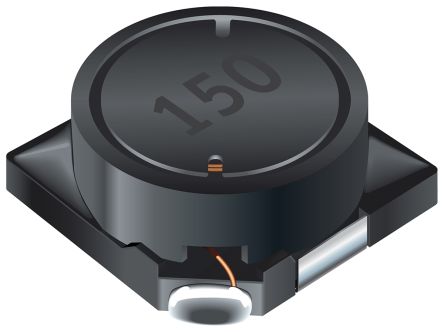

SRR7032-4R7M

BOURNS  SRR7032-4R7M  表面贴装功率电感器, SRR7032系列, 4.7 µH, ± 20%, 屏蔽, 0.042 ohm, 2 A

SRR7032 系列磁性屏蔽线绕器

Bourns SRR7032 系列贴片屏蔽式功率电感器。 应用包括直流/直流转换器和电源的输入/输出，适用于：便携式通信设备；摄像机；液晶电视；汽车收音机

得捷:
FIXED IND 4.7UH 2A 42 MOHM SMD

欧时:
Bourns SRR7032 系列 屏蔽 铁氧体芯材 4.7 μH 绕线贴片电感器 SRR7032-4R7M, 2A Idc Q:16

立创商城:
4.7uH ±20% 2A 42mΩ

e络盟:

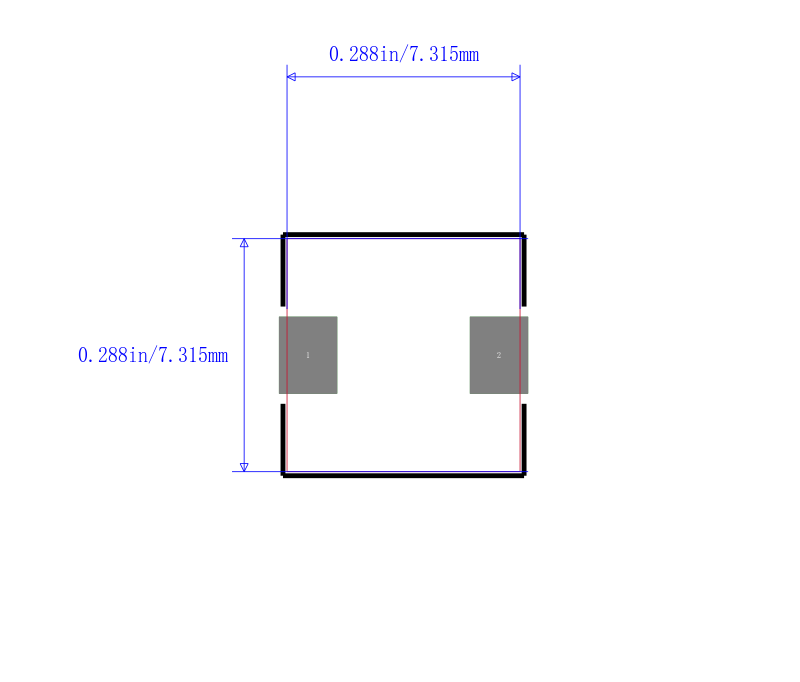

功率电感SMD, 4.7 µH, 2 A, 屏蔽, 2 A, SRR7032系列, 7mm x 7mm x 3.2mm

艾睿:
This power SRR7032-4R7M surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 7.3 mm long, 3.4 mm tall and 7.3 mm deep. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 43MTyp Hz. It has a tolerance of 20%. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 2 A with a maximum resistance of 42m Ohm. It has an inductance of 4.7u H.

安富利:
Ind Power Shielded Wirewound 4.7uH 20% 100KHz 16Q-Factor Ferrite 2A T/R

Verical:
Inductor Power Shielded Wirewound 4.7uH 20% 1KHz 16Q-Factor Ferrite 2A 0.042Ohm DCR T/R

Newark:
# BOURNS  SRR7032-4R7M  Surface Mount Power Inductor, SRR7032 Series, 4.7 µH, 2 A, 2 A, Shielded, 0.042 ohm

MASTER:
Inductor Power Shielded Wirewound 4.7uH 20% 1KHz 16Q-Factor Ferrite 2A 42mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 4.7uH 20% 1KHz 16Q-Factor Ferrite 2A 42mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 4.7uH 20% 1KHz 16Q-Factor Ferrite 2A 42mOhm DCR T/R

Win Source:
FIXED IND 4.7UH 2A 42 MOHM SMD / 4.7 µH Shielded Drum Core, Wirewound Inductor 2 A 42mOhm Max Nonstandard
