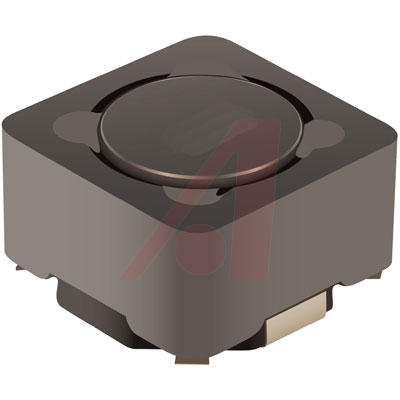

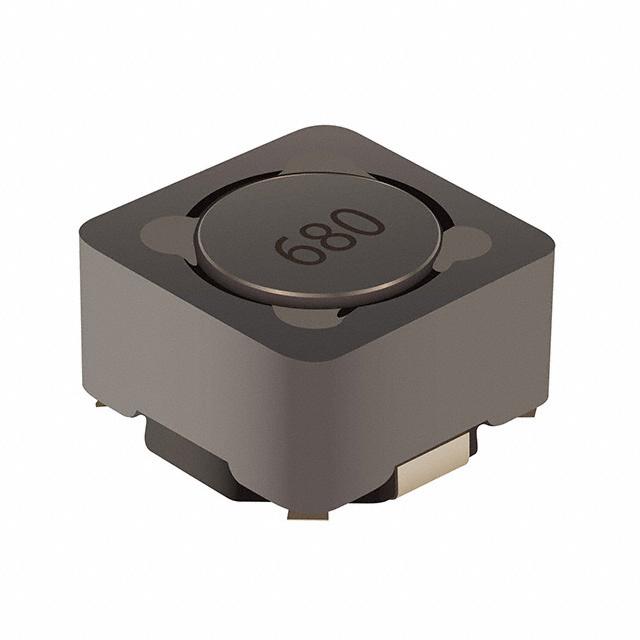

SRR0745A-680M

BOURNS  SRR0745A-680M  表面贴装功率电感器, AEC-Q200 SRR0745A系列, 68 µH, ± 20%, 屏蔽, 0.3 ohm, 860 mA

**Features:

**

* Shielded Construction

* Inductance Range: 10 to 1000 μH

* Heating Current up to 2.1 A

* Dimensions: 7.3 × 7.3 × 4.5 mm

* AEC-Q200 Qualified**

Applications:

**

* Automotive Systems: Driver Assistant, Information, Entertainment and Lighting

* DC/DC Converters

* Power Supplies

立创商城:
68uH ±20% 860mA 300mΩ

得捷:
FIXED IND 68UH 860MA 300MOHM SMD

贸泽:
Fixed Inductors 68uH 20% SMD 0745 AEC-Q200

e络盟:
功率电感SMD, 68 µH, 860 mA, 屏蔽, 960 mA, SRR0745A 系列, 7.3mm x 7.3mm x 4.5mm

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power SRR0745A-680M surface mount inductor from Bourns is perfect for you! This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 860mA typ with a maximum resistance of 300m Ohm. It has a tolerance of 20%. Its test frequency is 1K Hz. This device is made with wirewound technology. It has an inductance of 68u H. This product is 7.5 mm long, 4.7 mm tall and 7.5 mm deep.

Allied Electronics:
SMD Shieled Power Inductor; 68uH; 20%; SRR0745A

安富利:
Ind Power Shielded 68uH 20% 1KHz Ferrite 860mA T/R

Verical:
Inductor Power Shielded Wirewound 68uH 20% 1KHz Ferrite 0.86A 0.3Ohm DCR Automotive T/R

Newark:
# BOURNS  SRR0745A-680M  Surface Mount Power Inductor, AEC-Q200 SRR0745A Series, 68 H, 20%, Shielded, 0.3 ohm, 860 mA

Online Components:
Inductor Power Shielded Wirewound 68uH 20% 1KHz Ferrite 860mA 300mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Shielded Wirewound 68uH 20% 1KHz Ferrite 860mA 300mOhm DCR Automotive T/R
