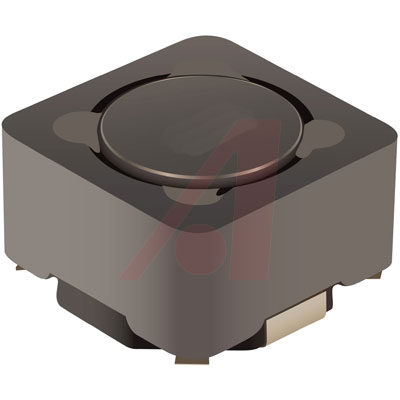

BOURNS SRR0745A-271M 表面贴装功率电感器, AEC-Q200 SRR0745A系列, 270 µH, ± 20%, 屏蔽, 1.2 ohm, 380 mA
**Features:
**
* Shielded Construction
* Inductance Range: 10 to 1000 μH
* Heating Current up to 2.1 A
* Dimensions: 7.3 × 7.3 × 4.5 mm
* AEC-Q200 Qualified**
Applications:
**
* Automotive Systems: Driver Assistant, Information, Entertainment and Lighting
* DC/DC Converters
* Power Supplies
得捷:
FIXED IND 270UH 380MA 1.2OHM SMD
立创商城:
270uH ±20% 380mA 1.2Ω
e络盟:
功率电感SMD, 270 µH, 380 mA, 屏蔽, 460 mA, SRR0745A 系列, 7.3mm x 7.3mm x 4.5mm
艾睿:
Save valuable space on a PCB with this power SRR0745A-271M surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This SMD inductor has a maximum DC current of 380mA typ with a maximum resistance of 1.2 Ohm. It has an inductance of 270u H. This product is 7.5 mm long, 4.7 mm tall and 7.5 mm deep. Its test frequency is 1K Hz. It has a tolerance of 20%. This device utilizes wirewound technology.
Allied Electronics:
SMD Shieled Power Inductor; 270uH; 20%; SRR0745A
安富利:
Ind Power Shielded 270uH 20% 1KHz Ferrite 380mA T/R
Verical:
Inductor Power Shielded Wirewound 270uH 20% 1KHz Ferrite 0.38A 1.2Ohm DCR Automotive T/R
Newark:
# BOURNS SRR0745A-271M Surface Mount Power Inductor, AEC-Q200 SRR0745A Series, 270 H, 20%, Shielded, 1.2 ohm, 380 mA
Online Components:
Inductor Power Shielded Wirewound 270uH 20% 1KHz Ferrite 380mA 1.2Ohm DCR Automotive T/R
Electro Sonic:
Inductor Power Shielded Wirewound 270uH 20% 1KHz Ferrite 0.38A 1.2Ohm DCR Automotive T/R
额定电流 380 mA
容差 ±20 %
电感 270 µH
电感公差 ±20 %
测试频率 1 kHz
电阻DC) 1.2 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 1.2 Ω
安装方式 Surface Mount
引脚数 2
封装 SMD
宽度 7.3 mm
高度 4.7 mm
封装 SMD
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
