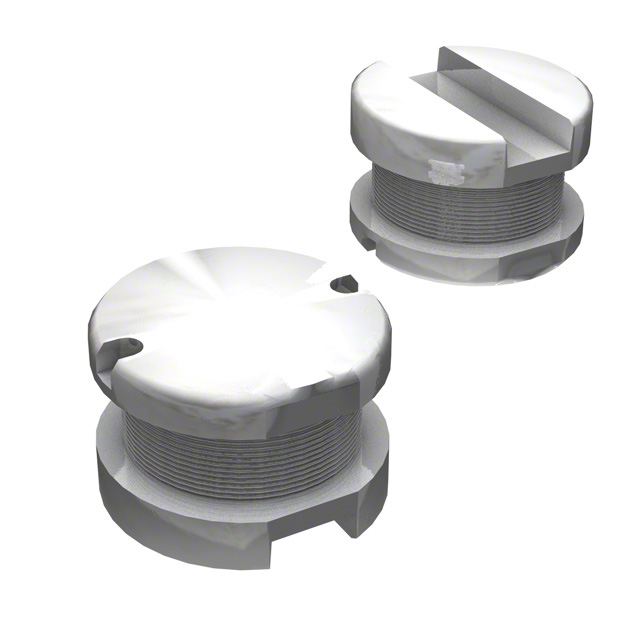

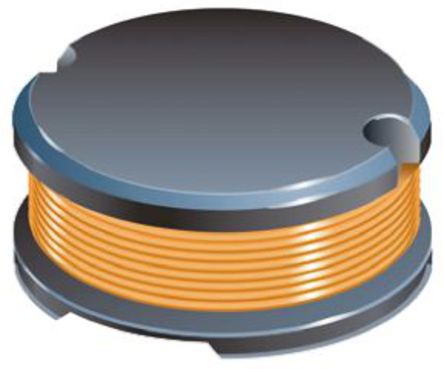

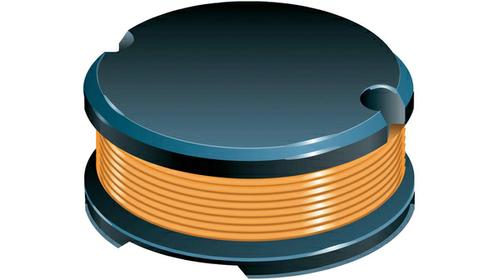

BOURNS SDR0805-271KL 表面贴装功率电感器, SDR0805系列, 270 µH, ± 10%, 非屏蔽, 1.11 ohm, 0.42 A
SDR0805 系列线绕扼流圈
提供 E12 系列
小型设计,最大直径仅 7.8mm
符合 RoHs
应用于直流/直流转换器的输入/输出以及电源
得捷:
FIXED IND 270UH 420MA 1.11OHM SM
立创商城:
270uH ±10% 420mA 1.11Ω
欧时:
### SDR0805 系列线绕扼流圈提供 E12 系列 小型设计,最大直径仅 7.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器(扼流圈)
贸泽:
Fixed Inductors 270uH 10% SMD 0805
e络盟:
功率电感SMD, 270 µH, 420 mA, 非屏蔽, 680 mA, SDR0805系列, 7.8mm x 7.8mm x 5.3mm
艾睿:
This power SDR0805-271KL surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device utilizes wirewound technology. It has an inductance of 270u H. This SMD inductor has a maximum DC current of 420m A with a maximum resistance of 1.11 Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 5M Hz. It has a tolerance of 10%. This product is 5.3 mm tall with a diameter of 7.8 mm.
Allied Electronics:
SDR0805 WireWound SMDinductor w/ FerriteCore, 270 uH +/-10%WireWound 420mA Idc
安富利:
Ind Power Wirewound 270uH 10% 1KHz 12Q-Factor Ferrite 420mA T/R
Verical:
Inductor Power Unshielded Wirewound 270uH 10% 1KHz 12Q-Factor Ferrite 0.42A 1.11Ohm DCR T/R
Newark:
# BOURNS SDR0805-271KL Surface Mount Power Inductor, SDR0805 Series, 270 µH, 0.42 A, 0.68 A, Unshielded, 1.11 ohm
MASTER:
Inductor Power Wirewound 270uH 10% 1KHz 12Q-Factor Ferrite 420mA 1.11Ohm DCR T/R
Online Components:
Inductor Power Wirewound 270uH 10% 1KHz 12Q-Factor Ferrite 420mA 1.11Ohm DCR T/R
Electro Sonic:
Inductor Power Wirewound 270uH 10% 1KHz 12Q-Factor Ferrite 420mA 1.11Ohm DCR T/R
额定电流 420 mA
容差 ±10 %
电感 270 µH
自谐频率 5 MHz
Q值 12.0
电感公差 ±10 %
测试频率 1 kHz
电阻DC) 1.11 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 1.11 Ω
安装方式 Surface Mount

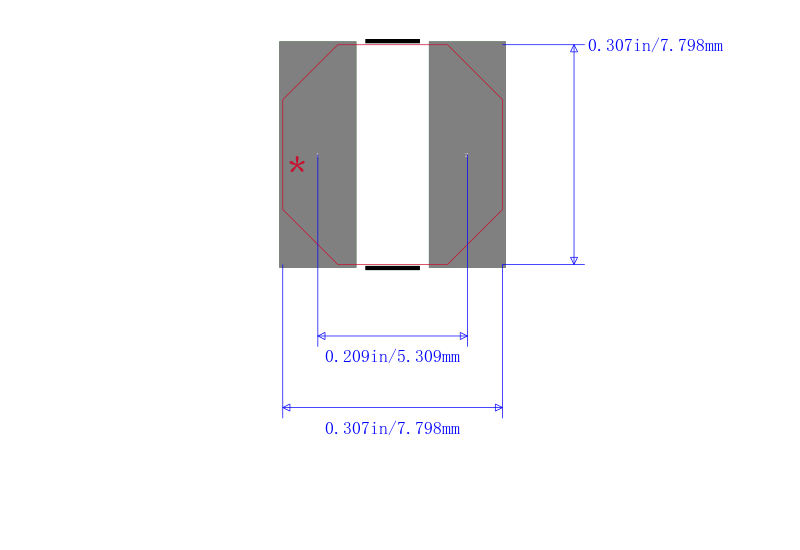

封装 7.8mm x 7.8mm x 5.3mm
长度 7.8 mm
高度 5.3 mm
封装 7.8mm x 7.8mm x 5.3mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDR0805-271KL Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
744775227 伍尔特 | 功能相似 | SDR0805-271KL和744775227的区别 |
PM75-271K 伯恩斯 | 功能相似 | SDR0805-271KL和PM75-271K的区别 |
HM79-30271LFTR13 TT Electronics/BI | 功能相似 | SDR0805-271KL和HM79-30271LFTR13的区别 |
