双电压控制振荡器 DUAL VOLTAGE-CONTROLLED OSCILLATORS
The is a dual Voltage-controlled Oscillator in a single monolithic chip. The output frequency of each VCO is established by an external capacitor in combination with two voltage-sensitive inputs, one for frequency range and one for frequency control. These inputs can be used to vary the output frequency as shown under typical characteristics. These highly stable oscillators can be set to operate at any frequency typically between 0.12Hz and 85MHz. While the enable input is low, the output is enabled. While the enable input is high, the output is high. This device can operate from a single 5V supply. However, one set of supply-voltage and ground pins VCC and GND is provided for the enable, synchronization-gating and output sections and a separate set GND and is provided for the oscillator and associated frequency-control circuits so that effective isolation can be accomplished in the system.
频率 1Hz ~ 60MHz
电源电压DC 5.00 V, 5.25 V max
供电电流 105 mA
电路数 2
针脚数 16
负载电容 15 pF
位数 2
电压波节 5.00 V
最大占空比 50 %
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Through Hole
引脚数 16

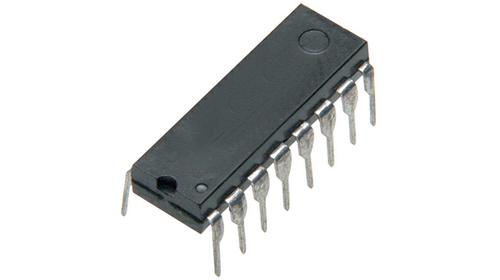

封装 PDIP-16
高度 4.57 mm
封装 PDIP-16
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
制造应用 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74S124N TI 德州仪器 | 当前型号 | 当前型号 |
SN74S124N3 德州仪器 | 完全替代 | SN74S124N和SN74S124N3的区别 |
SN54S124J 德州仪器 | 功能相似 | SN74S124N和SN54S124J的区别 |
