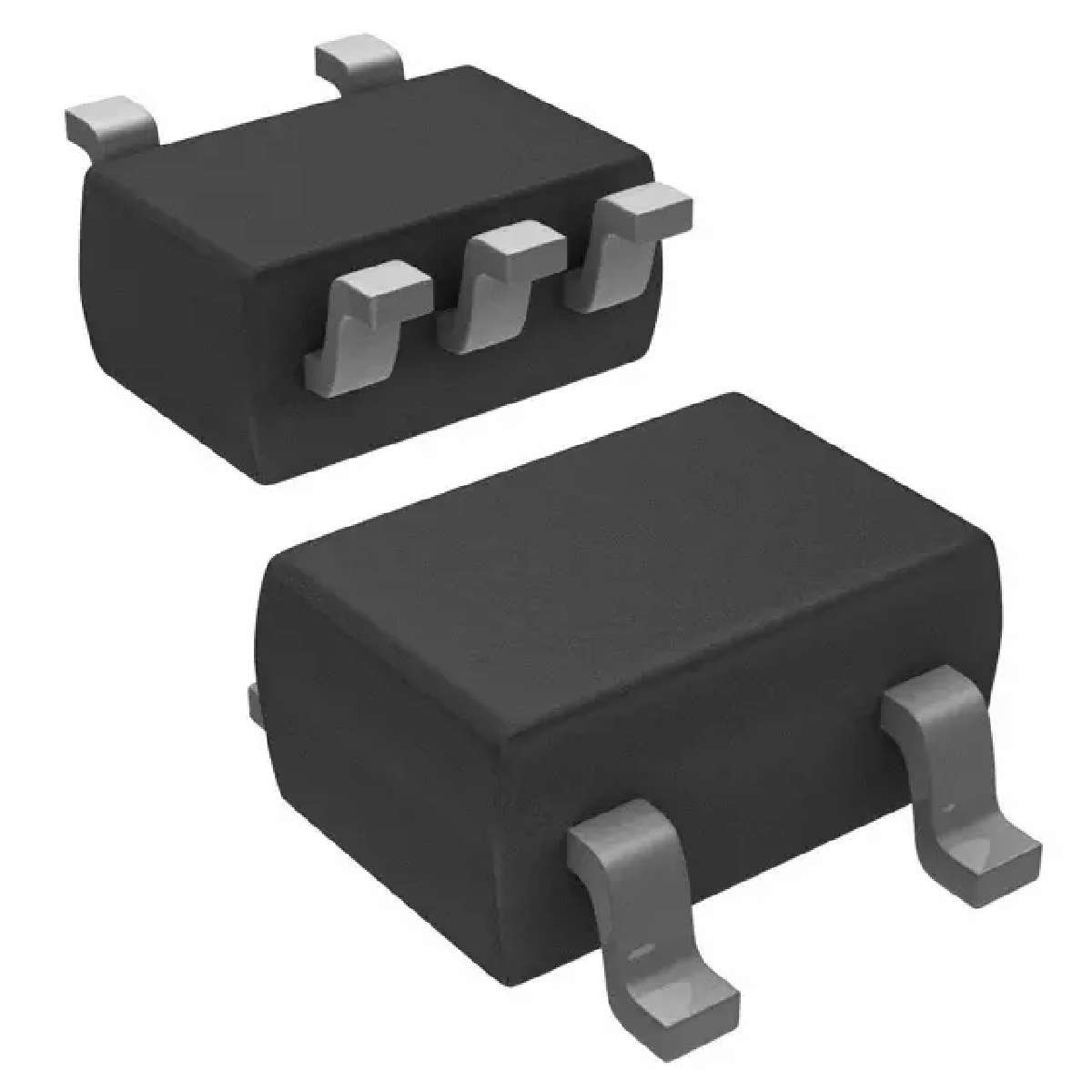

SN74AHC1G08DCKJ

AND Gate 1Element 2IN CMOS 5Pin SC-70 T/R

description/ordering information

The SN74AHC1G08 is a single 2-input positive-AND gate. The device performs the Boolean function Y=A•B or Y=A + B in positive logic.

Operating Range of 2 V to 5.5 V

Max tpdof 7 ns at 5 V

Low Power Consumption, 10-µA Max ICC

±8-mA Output Drive at 5 V

Schmitt-Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time

Latch-Up Performance Exceeds 250 mA Per JESD 17

ESD Protection Exceeds JESD 22

− 2000-V Human-Body Model A114-A

− 200-V Machine Model A115-A

− 1000-V Charged-Device Model C101
