SMS15CT1

5线TVS

5−Line Transient Voltage Suppressor Array

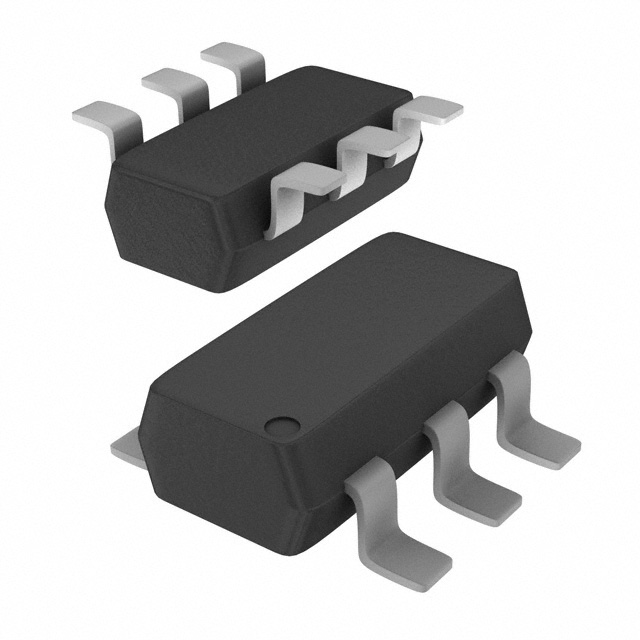

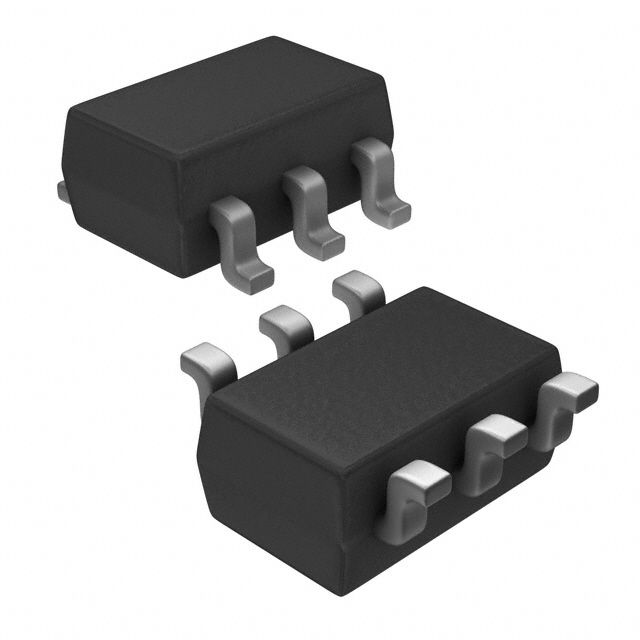

This 5−line voltage transient suppressor array is designed for application requiring transient voltage protection capability. It is intended for use in over−transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics, networking communication and other applications. This device features a monolithic common anode design which protects five independent lines in a single SC−74 package.

Features

• Protects up to 5 Lines in a Single SC−74 Package

• Peak Power Dissipation − 350 W 8 X 20 μs Waveform

• ESD Rating of Class 3B Exceeding 8.0 kV per Human Body Model and Class C Exceeding 400 V per Machine Model

• Compliance with IEC 61000−4−2 ESD 15 kV Air, 8.0 kV Contact

• Flammability Rating of UL 94 V−0

• Pb−Free Package is Available

Applications

• Hand−Held Portable Applications

• Networking and Telecom

• Automotive Electronics

• Serial and Parallel Ports

• Notebooks, Desktops, Servers
