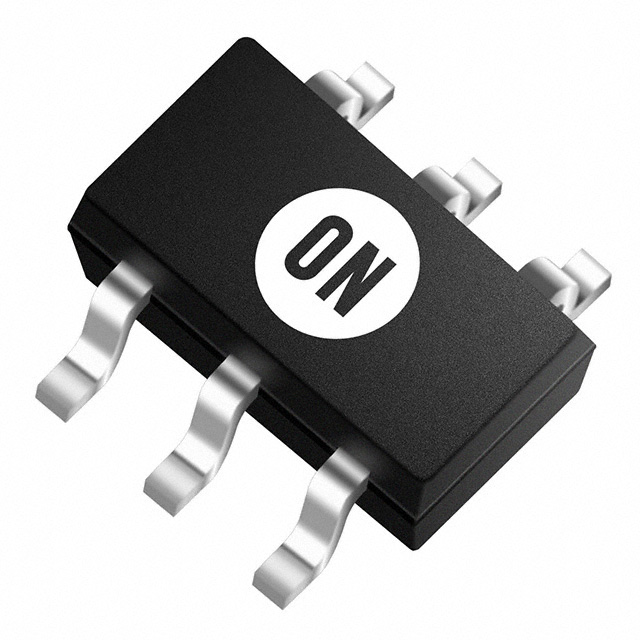

SMF05CT1

5线TVS

5−Line Transient Voltage Suppressor Array

This 5−line voltage transient suppressor array is designed for application requiring transient voltage protection capability. It is  intended for use in over−transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics,

networking communication and other applications. This device features a monolithic common anode design which protects five independent lines in a single SC−88 package.

Features

•Protects up to 5−Line in a Single SC−88 Package

•Peak Power Dissipation −100 W 8 x 20 s Waveform

•ESD Rating of Class 3B Exceeding 8 kV per Human Body Model and Class C Exceeding 400 V per Machine Model.

•Compliance with IEC 61000−4−2 ESD 15 kV Air, 8 kV Contact

•Flammability Rating of UL 94 V−0

•Pb−Free Packages are Available

Applications

•Hand−Held Portable Applications

•Networking and Telecom

•Automotive Electronics

•Serial and Parallel Ports

•Notebooks, Desktops, Servers
