5线TVS
5−Line Transient Voltage Suppressor Array
This 5−line voltage transient suppressor array is designed for application requiring transient voltage protection capability. It is intended for use in over−transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics,
networking communication and other applications. This device features a monolithic common anode design which protects five independent lines in a single SC−88 package.
Features
•Protects up to 5−Line in a Single SC−88 Package
•Peak Power Dissipation −100 W 8 x 20 s Waveform
•ESD Rating of Class 3B Exceeding 8 kV per Human Body Model and Class C Exceeding 400 V per Machine Model.
•Compliance with IEC 61000−4−2 ESD 15 kV Air, 8 kV Contact
•Flammability Rating of UL 94 V−0
•Pb−Free Packages are Available
Applications
•Hand−Held Portable Applications
•Networking and Telecom
•Automotive Electronics
•Serial and Parallel Ports
•Notebooks, Desktops, Servers
额定电压DC 15.0 V
工作电压 15 V
额定功率 100 W
击穿电压 17 V
耗散功率 100 W
钳位电压 29 V
脉冲峰值功率 100 W
最小反向击穿电压 17 V
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount

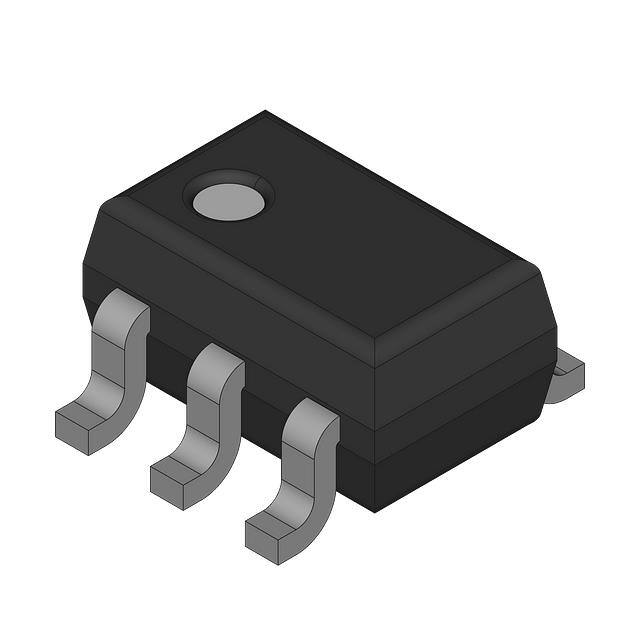

封装 SC-88-6
长度 2.90 mm
宽度 1.80 mm
高度 1.00 mm
封装 SC-88-6
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMF15CT1 ON Semiconductor 安森美 | 当前型号 | 当前型号 |
SMF15CT1G 安森美 | 完全替代 | SMF15CT1和SMF15CT1G的区别 |
SMF15C 安森美 | 功能相似 | SMF15CT1和SMF15C的区别 |
SMF15CA 美微科 | 功能相似 | SMF15CT1和SMF15CA的区别 |
