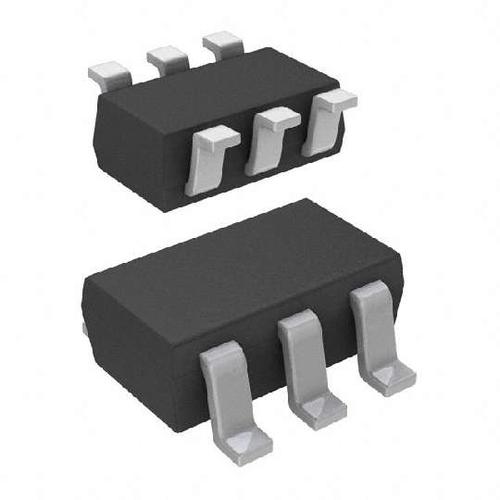

SN74LVC1G0832DBVR

单3输入正与或门 SINGLE 3-INPUT POSITIVE AND-OR GATE

This device is designed for 1.65-V to 5.5-V VCC operation.

The SN74LVC1G0832 device is a single 3-input positive AND-OR gate. It performs the Boolean function Y = A • B + C in positive logic.

By tying one input to GND or VCC, the SN74LVC1G0832 device offers two more functions. When C is tied to GND, this device performs as a 2−input AND gate Y = A • B. When A is tied to VCC, the device works as a 2−input OR gate Y = B + C. This device also works as a 2−input OR gate when B is tied to VCC Y = A + C.

NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
