SN74LVC1G57DRYR

可配置多函数栅 CONFIGURABLE MULTIPLE-FUNCTION GATE

description/ordering information

This configurable multiple-function gate is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G57 features configurable multiple functions. The output state is determined by eight patterns of 3-bit input. The user can choose the logic functions AND, OR, NAND, NOR, XNOR, inverter, and noninverter. All inputs can be connected to VCC or GND.

This device functions as an independent gate, but because of Schmitt action, it may have different input threshold levels for positive-going VT+ and negative-going VT− signals. NanoStar™ and NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

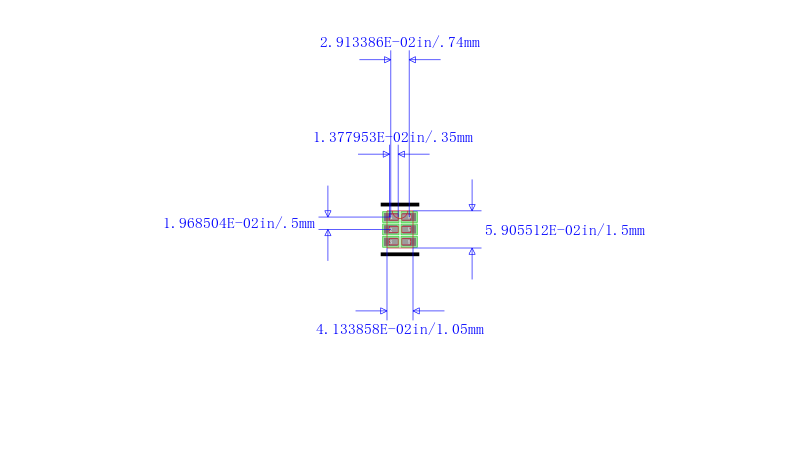

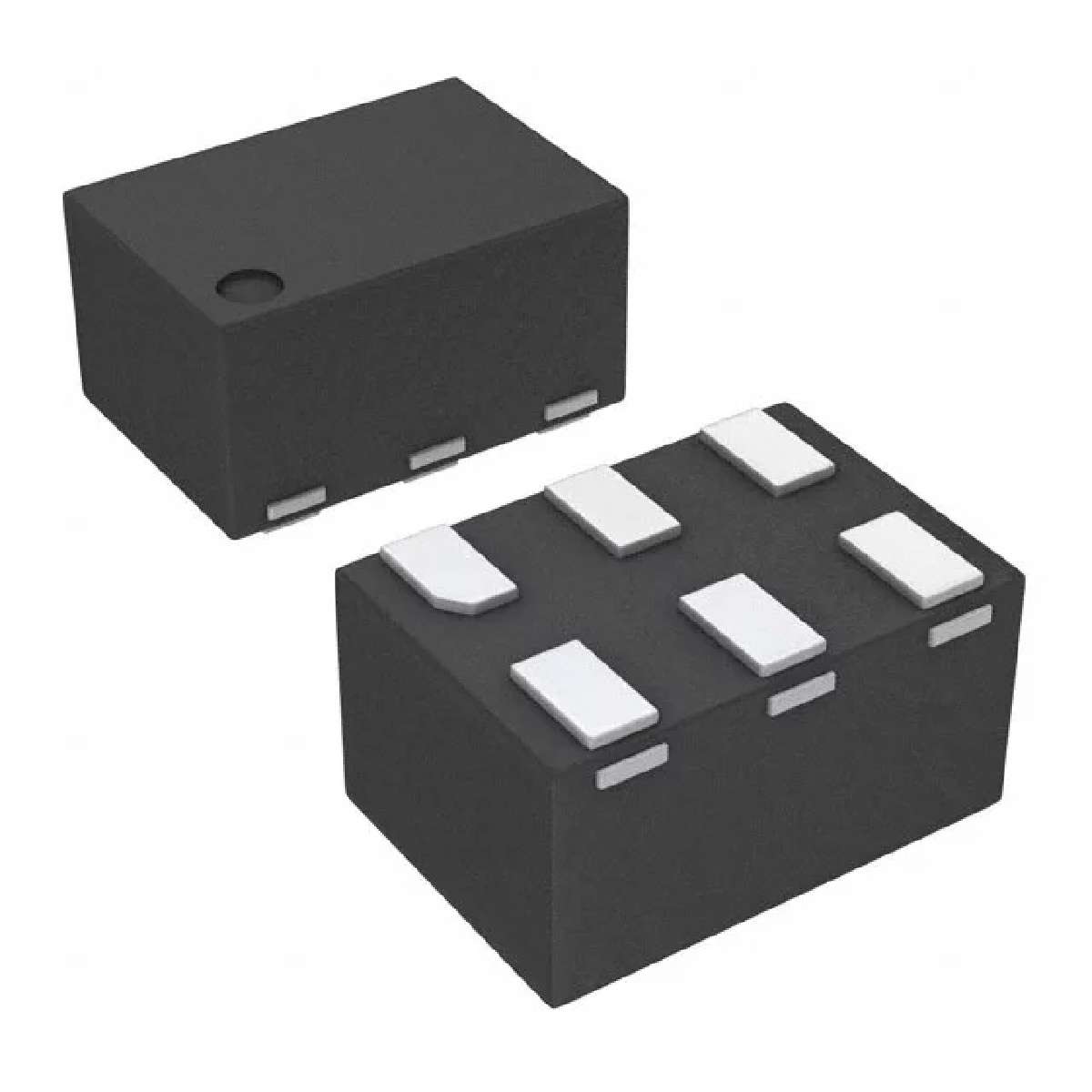

Available in the Texas Instruments NanoStar™ and NanoFree™ Package

Supports 5-V VCC Operation

Inputs Accept Voltages to 5.5 V

Max tpdof 6.3 ns at 3.3 V

Low Power Consumption, 10-µA Max ICC ±24-mA Output Drive at 3.3 V

Ioff Supports Partial-Power-Down Mode Operation

Latch-Up Performance Exceeds 100 mA

Per JESD 78, Class II

ESD Protection Exceeds JESD 22

− 2000-V Human-Body Model A114-A

− 200-V Machine Model A115-A

− 1000-V Charged-Device Model C101
