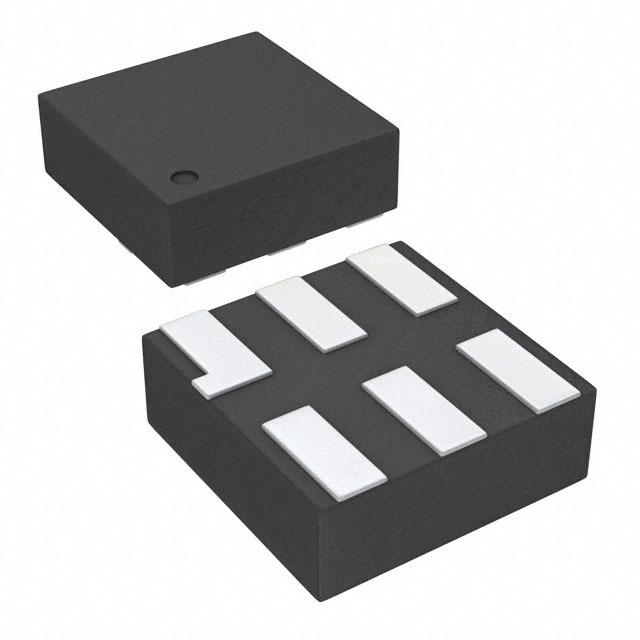

SN74LVC1G98DSFR

可配置多功能门 6-SON -40 to 125

* Available in the Texas Instruments NanoFree Package * Supports 5-V VCC Operation * Inputs Accept Voltages to 5.5 V * Supports Down Translation to VCC * Max tpd of 6.3 ns at 3.3 V * Low Power Consumption, 10-µA Max ICC * ±24-mA Output Drive at 3.3 V * Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection * Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II * ESD Protection Exceeds JESD 22 * 2000-V Human-Body Model A114-A * 200-V Machine Model A115-A * 1000-V Charged-Device Model C101
