可配置多函数栅 CONFIGURABLE MULTIPLE-FUNCTION GATE
Simplify your circuit through the use of Texas Instruments" logic gates, great for implementing basic logical functions. This gate has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
电源电压DC 1.65V ~ 5.50V
输出接口数 1
电路数 1
位数 1
传送延迟时间 5.10 ns
电压波节 5.00 V, 3.30 V, 2.50 V, 1.80 V
逻辑门个数 1
输入数 3
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 6

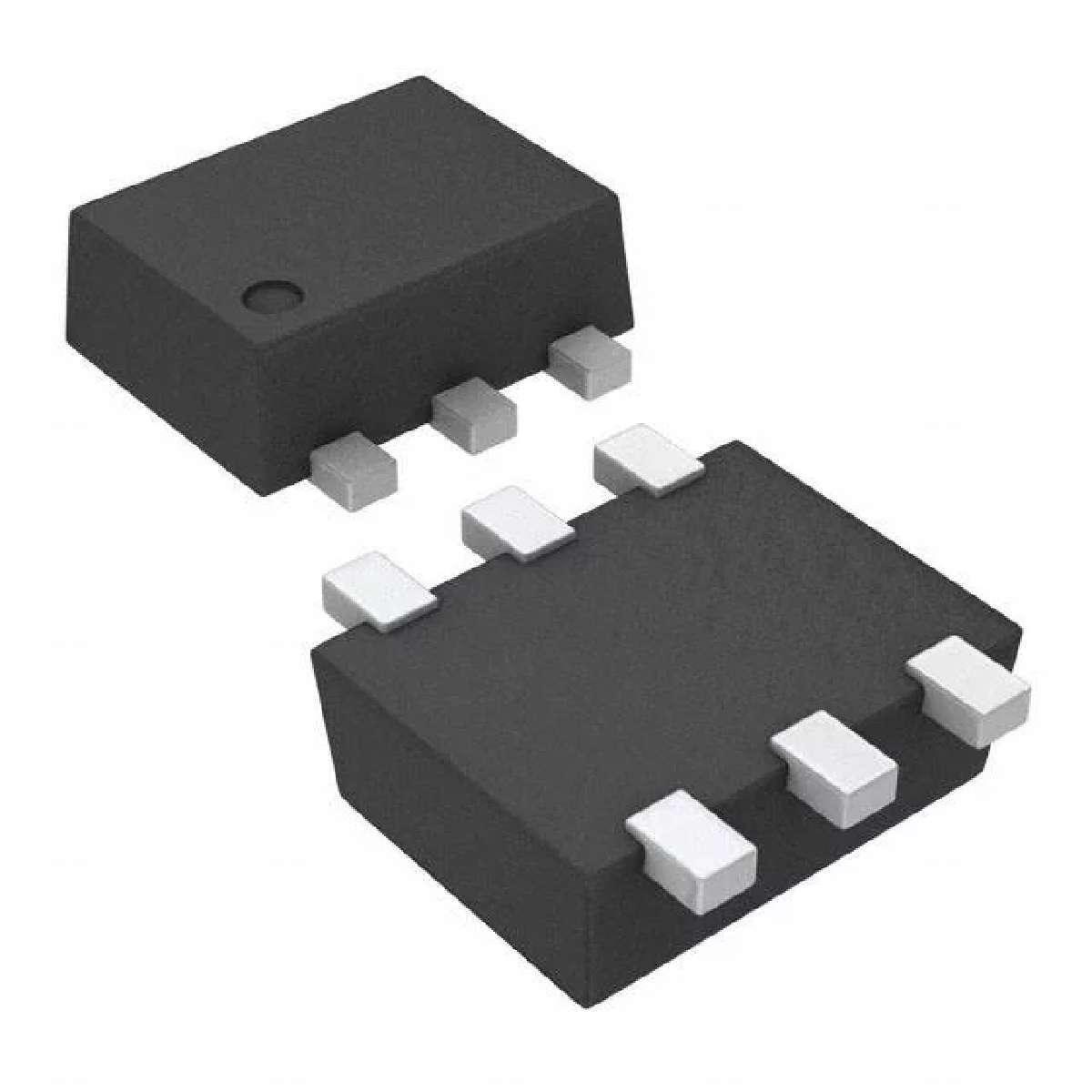

封装 SOT-553-6
长度 1.6 mm
宽度 1.2 mm
高度 0.55 mm
封装 SOT-553-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVC1G58DRLR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC1G58DRLRG4 德州仪器 | 完全替代 | SN74LVC1G58DRLR和SN74LVC1G58DRLRG4的区别 |
