10位通用施密特触发器缓冲器,具有三态输出 10-BIT UNIVERSAL SCHMITT-TRIGGER BUFFER WITH 3-STATE OUTPUTS
The is a 10-bit universal Schmitt-Trigger Buffer with 3-state outputs designed for 2 to 5.5V VCC operation. The logic control T/C\\ pin allows the user to configure Y1 to Y8 as non-inverting or inverting outputs. When T/C\ is high, the Y-outputs are non-inverted true logic and when T/C\ is low, the Y-outputs are inverted complementary logic. When output-enable OE\ input is low, the device passes data from Dn to Yn. When OE\ is high, the Y-outputs are in the high-impedance state. The path A to P is a simple Schmitt-trigger buffer and the path B to N is a simple Schmitt-trigger inverter. This device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
电源电压DC 2.00V ~ 5.50V
输出接口数 10
电路数 1
通道数 10
针脚数 24
位数 10
传送延迟时间 17.0 ns
电压波节 2.50 V, 3.30 V, 5.00 V
逻辑门个数 10
输出电流驱动 -1.00 mA
输入数 10
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 24

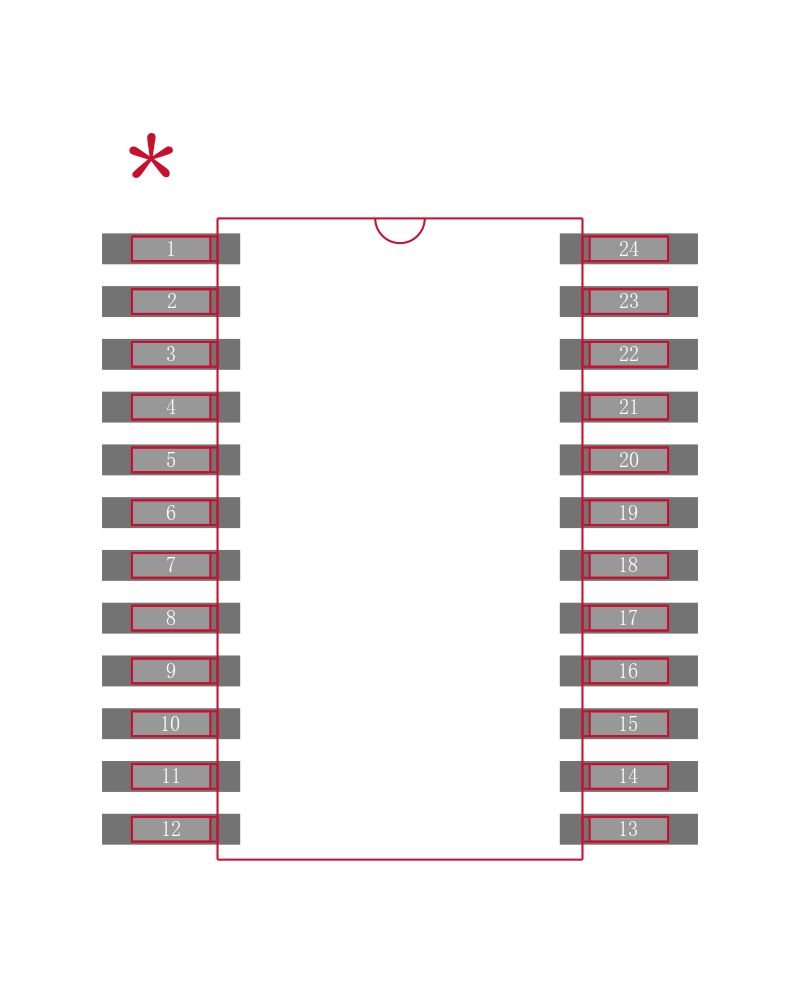

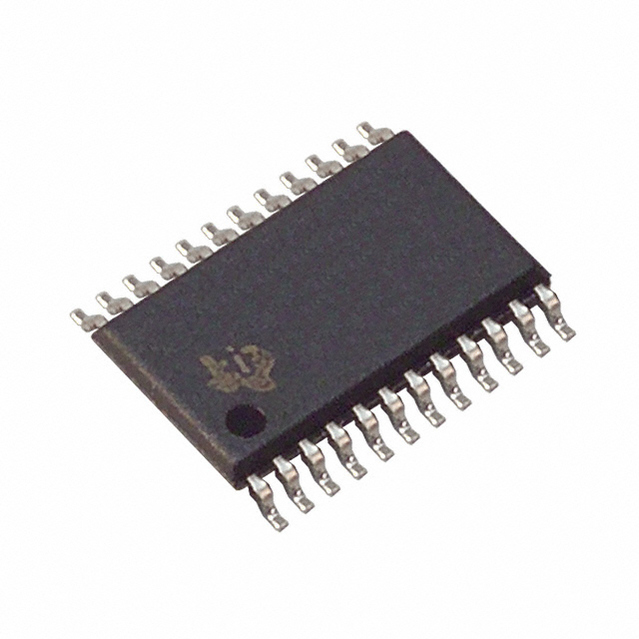

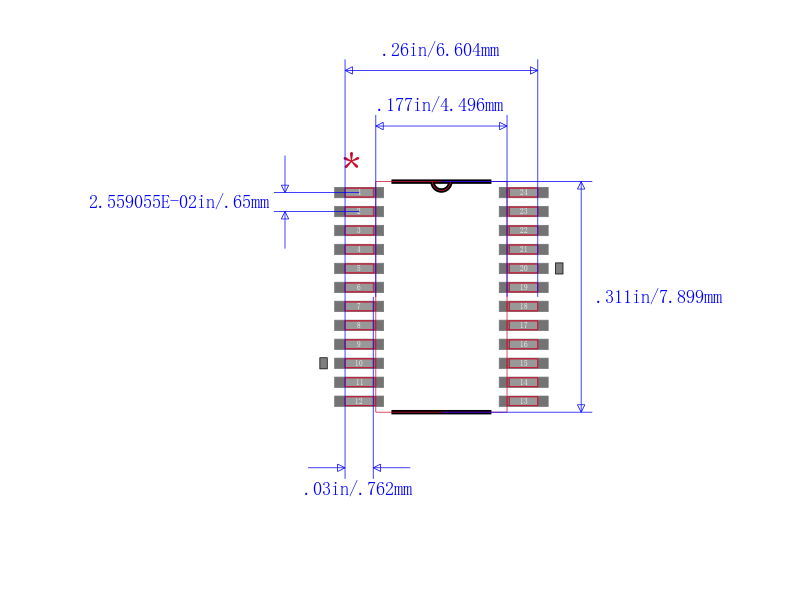

封装 TSSOP-24
封装 TSSOP-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 通信与网络, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LV8151PW TI 德州仪器 | 当前型号 | 当前型号 |
SN74LV8151DW 德州仪器 | 完全替代 | SN74LV8151PW和SN74LV8151DW的区别 |
SN74LV8151PWR 德州仪器 | 完全替代 | SN74LV8151PW和SN74LV8151PWR的区别 |
SN74LV8151DGVR 德州仪器 | 完全替代 | SN74LV8151PW和SN74LV8151DGVR的区别 |
