SN74LVC1G97YZAR

可配置多函数栅 CONFIGURABLE MULTIPLE-FUNCTION GATE

DESCRIPON/ORDERING INFORMATION

This configurable multiple-function gate is designed for 1.65-V to 5.5-V VCC operation.

The SN74LVC1G97 features configurable multiple functions. The output state is determined by eight patterns of 3-bit input. The user can choose the logic functions MUX, AND, OR, NAND, NOR, inverter, and noninverter. All inputs can be connected to VCC or GND.

FEATURES

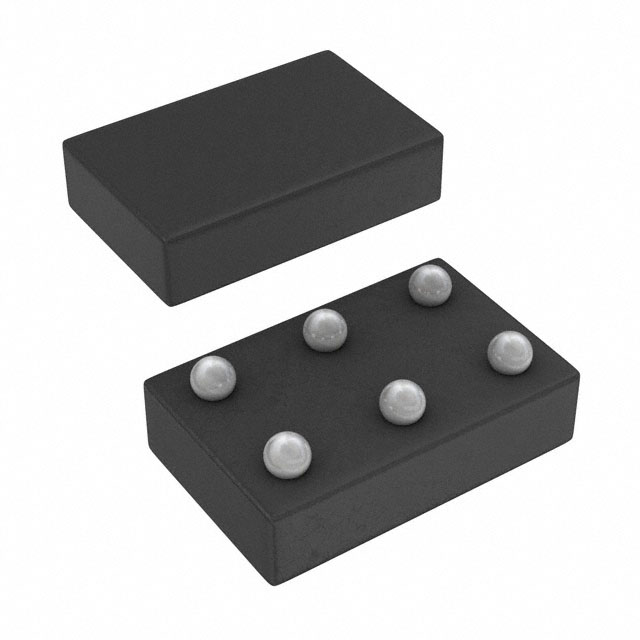

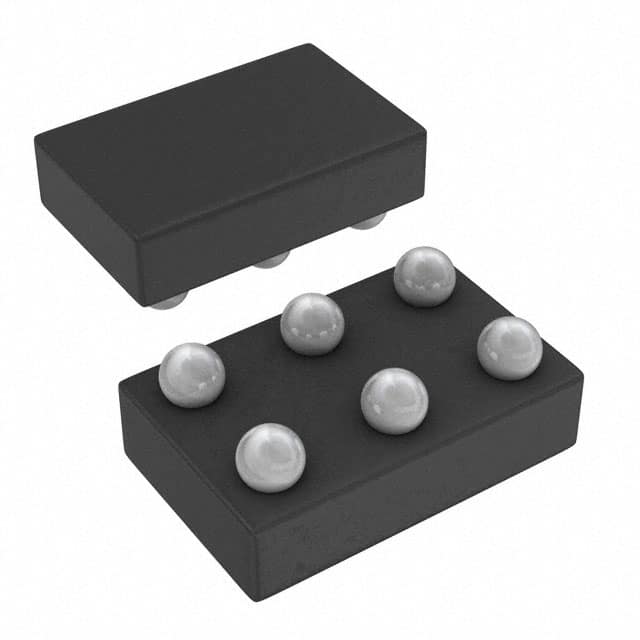

• Available in the Texas Instruments NanoStar™ and NanoFree™ Packages

• Supports 5-V VCC Operation

• Inputs Accept Voltages to 5.5 V

• Max tpd of 6.3 ns at 3.3 V

• Low Power Consumption, 10-µA Max ICC

• ±24-mA Output Drive at 3.3 V

• Ioff Supports Partial-Power-Down Mode Operation

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model A114-A

– 200-V Machine Model A115-A

– 1000-V Charged-Device Model C101

• Choose From Nine Specific Logic Functions
