8位移位寄存器具有三态输出寄存器 8-BIT SHIFT REGISTERS WITH 3-STATE OUTPUT REGISTERS
This counter shift register from Texas Instruments can be optimized in any circuit which contains numerous states, it will help maintain and switch into other states. With a 3-state output, this is power management at its best. This counter shift register has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 2.00V ~ 6.00V
输出接口数 9
电路数 4
位数 8
电压波节 6.00 V, 5.00 V, 2.00 V
输出电流驱动 -1.00 mA
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Through Hole

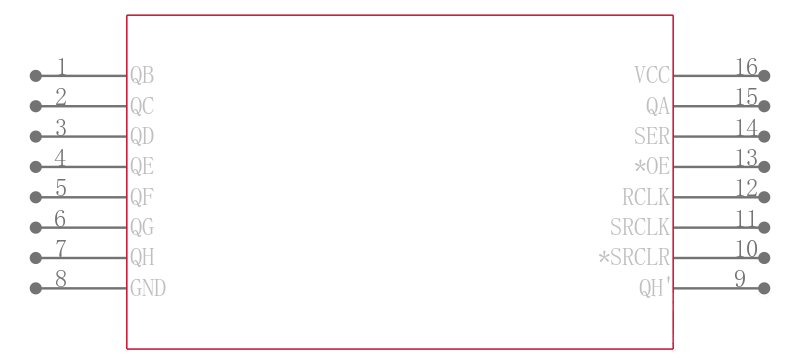

引脚数 16
封装 DIP-16
宽度 6.35 mm
封装 DIP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74HC595NE4 TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC594N 德州仪器 | 完全替代 | SN74HC595NE4和SN74HC594N的区别 |
SN74HC595N 德州仪器 | 类似代替 | SN74HC595NE4和SN74HC595N的区别 |
SN74HC594NE4 德州仪器 | 类似代替 | SN74HC595NE4和SN74HC594NE4的区别 |
