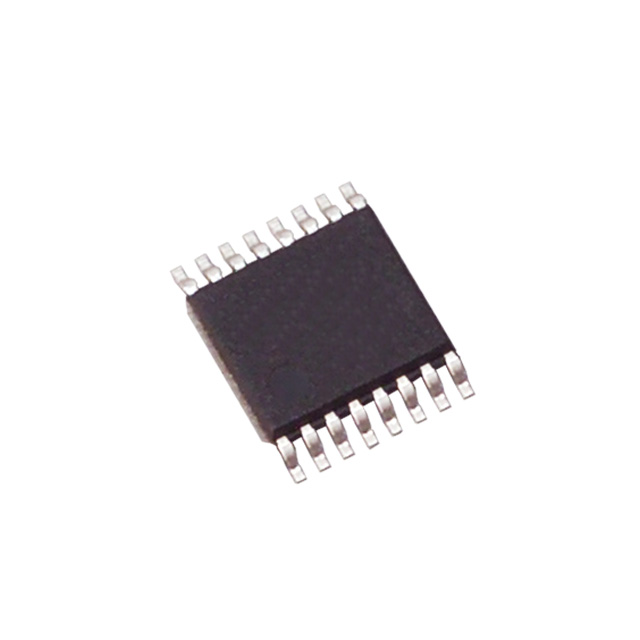

SN74HC165QPWREP

增强型产品 8 位并行负载移位寄存器 16-TSSOP -40 to 125

The SN74HC165 is an 8-bit parallel-load shift register that, when clocked, shifts the data toward a serial QH output. Parallel-in access to each stage is provided by eight individual direct data A-H inputs that are enabled by a low level at the shift/load SH/LD input. The SN74HC165 device also features a clock-inhibit CLK INH function and a complementary serial QH output.

Clocking is accomplished by a low-to-high transition of the clock CLK input while SH/LD\ is held high and CLK INH is held low. The functions of CLK and CLK INH are interchangeable. Since a low CLK and a low-to-high transition of CLK INH also accomplish clocking, CLK INH should be changed to the high level only while CLK is high. Parallel loading is inhibited when SH/LD\ is held high. While SH/LD\ is low, the parallel inputs to the register are enabled independently of the levels of the CLK, CLK INH, or serial SER inputs.
