8位通用移位/存储寄存器具有三态输出 8-BIT UNIVERSAL SHIFT/STORAGE REGISTERS WITH 3-STATE OUTPUTS
Are you working with a sensitive system with multiple states? Implement this counter shift register from Texas Instruments. With a 3-state output, this is power management at its best. This counter shift register has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
频率 70.0 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 10
电路数 1
位数 8
电压波节 5.00 V
输出电流驱动 -125 µA
输入数 10
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V

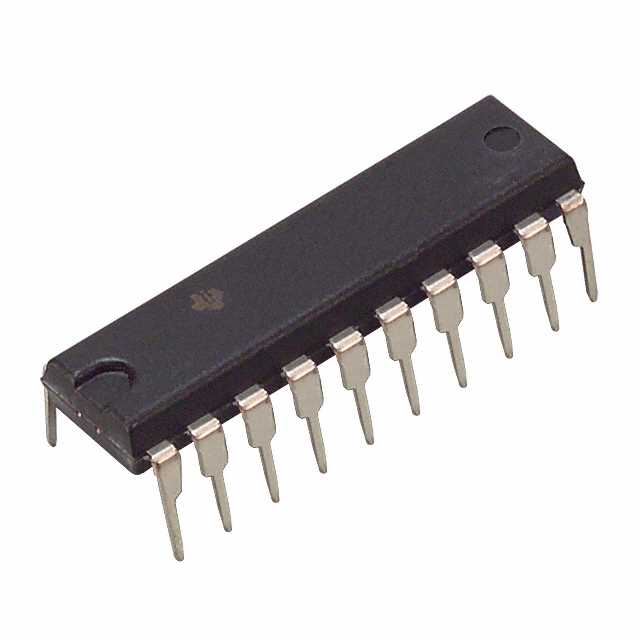

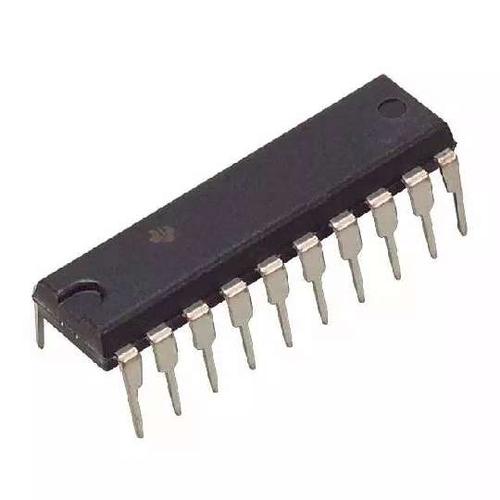

安装方式 Through Hole
引脚数 20
封装 PDIP-20
宽度 6.35 mm
封装 PDIP-20
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74F299N TI 德州仪器 | 当前型号 | 当前型号 |
SN74F299NE4 德州仪器 | 完全替代 | SN74F299N和SN74F299NE4的区别 |
SN74F299NG4 德州仪器 | 类似代替 | SN74F299N和SN74F299NG4的区别 |
74F299PC 飞兆/仙童 | 功能相似 | SN74F299N和74F299PC的区别 |
