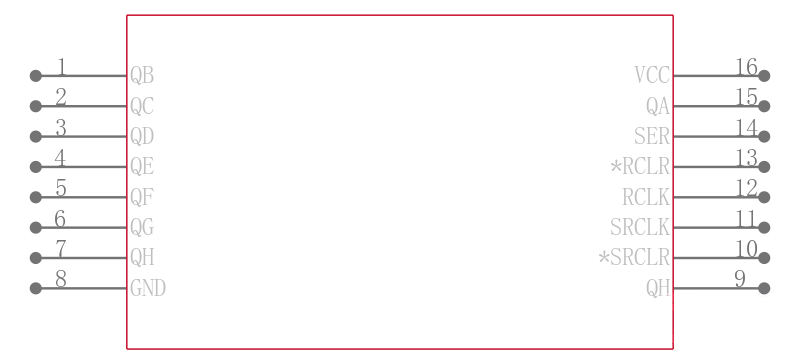

SN74AHCT594PWG4

8位的移位寄存器与输出寄存器 8-BIT SHIFT REGISTERS WITH OUTPUT REGISTERS

Description

The SN74AHCT594 device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register.

Features

• Inputs Are TTL-Voltage Compatible

• 8-Bit Serial-In, Parallel-Out Shift Registers With Storage

• Independent Direct Overriding Clears on Shift and Storage Registers

• Independent Clocks for Both Shift and Storage Registers

• Latch-Up Performance Exceeds 100 mA Per JESD, 78 Class II

• ESD Protection Exceeds JESD 22

   – 3500-V Human-Body Model

   – 200-V Machine Model

   – 2000-V Charged-Device Model

Applications

• Network Switches

• Power Infrastructure

• PCs, Notebooks

• Health and Fitness, Wearables

• Tests and Measurements
