Infrared LED, 3.18mm, 1Element, 935nm, PLASTIC PACKAGE-2

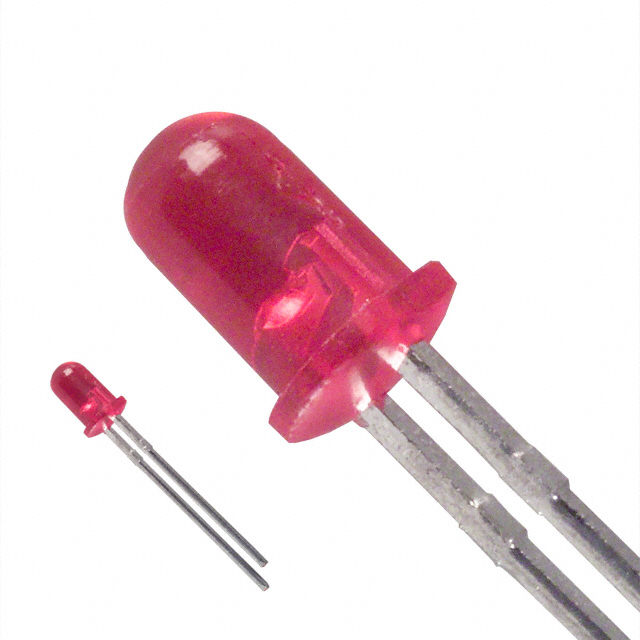

Infrared Emitter 935nm Circular Top Mount 2-Pin T-1
Product Highlights
T-1 package
15 ° nominal beam angle
935 nm wavelength
Consistent on-axis optical properties
Mechanically and spectrally matched to SDP8405 phototransistor and SDP8105 photodarlington
得捷:
EMITTER IR 935NM 50MA RADIAL
艾睿:
LED IrLED 935nm 2-Pin T-1
Verical:
Infrared Emitter 935nm Circular Top Mount 2-Pin T-1
儒卓力:
**IR EMITTER, 935NM, 15DEG **
MASTER:
Infrared Emitter 935nm Circular Top Mount 2-Pin T-1
Powell:
Sensors, Infrared Sensors, Emitter
Online Components:
Infrared Emitter 935nm Circular Top Mount 2-Pin T-1
Electro Sonic:
Infrared Emitter 935nm Circular Top Mount 2-Pin T-1
额定功率 70 mW
上升/下降时间 0.7 µs
正向电压 1.5 V
波长 935 nm
视角 15°
峰值波长 935 nm
耗散功率 70 mW
测试电流 20 mA
正向电流 50 mA
击穿电压 3 V
正向电压Max 1.5 V
正向电流Max 50 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 70 mW
安装方式 Through Hole
引脚数 2
封装 T-1
长度 3.94 mm
宽度 3.94 mm
高度 6.35 mm
封装 T-1
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8541402000
